PC95ELT25X8.6-Z

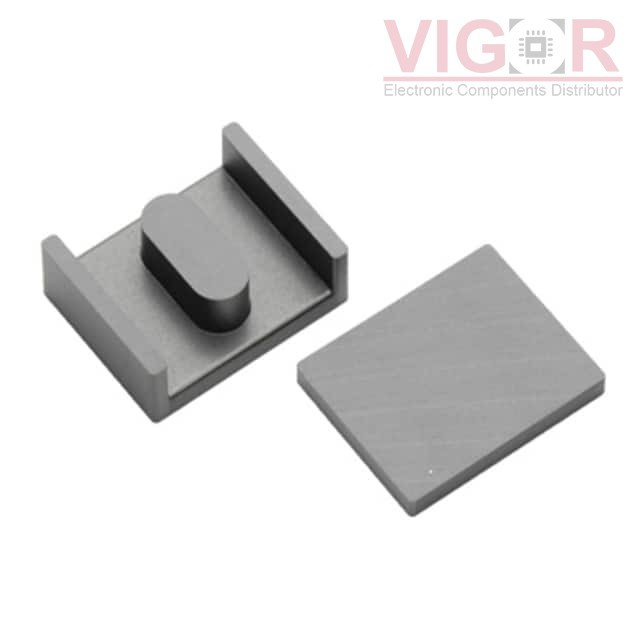

Image is for reference,
please contact us to get the real picture

Part No :: PC95ELT25X8.6-Z

Manufacturer: TDK Corporation

Description: FERRITE CORE ELT 7.54UH 1SET

Catalog: Ferrite Cores

DataSheet: PC95ELT25X8.6-Z PDF

Availability: 161 pieces

Unit Price: ~~$4.54000~~

Current price of PC95ELT25X8.6-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PC95ELT25X8.6-Z Specifications

Type	Description
Series:	Planar
Package:	Tray
Part Status:	Active
Core Type:	ELH, PLT
Supplier Device Package:	ELT 25 x 8.6
Material:	PC95
Diameter:	-
Inductance Factor (Al):	7.54 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.35
Effective Length (le) mm:	85.6
Effective Area (Ae) mm²:	30
Minimum Core Cross Section (Amin) mm²:	83
Effective Magnetic Volume (Ve) mm³:	2570
Finish:	Uncoated
Height:	6.29mm
Length:	25.00mm
Width:	20.00mm

Please confirm the specifications of the products when ordering.
