PC47EPC30-Z

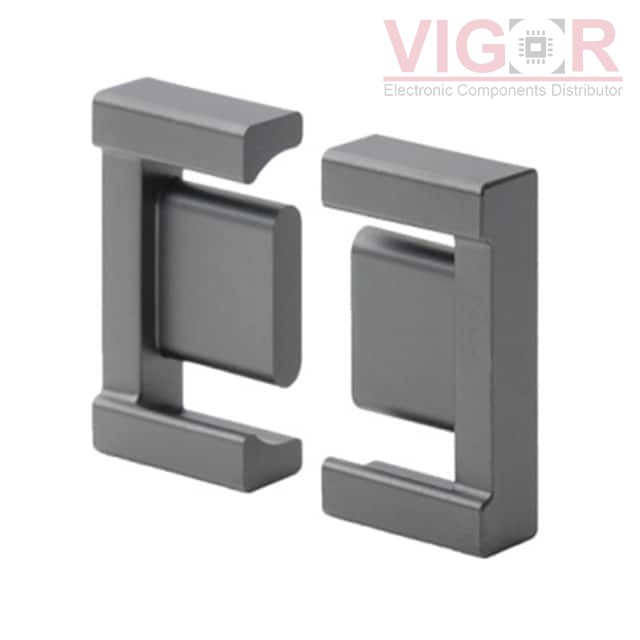

Product image
Product thumb
Part No :

PC47EPC30-Z

Manufacturer
TDK Corporation
VIGOR # :

4178897

Description
FERRITE CORE EPC 1.57UH 2PC SET
Catalog
Ferrite Cores
DataSheet
PC47EPC30-Z PDF
Country of origin
-
Date code
-
ads
PC47EPC30-Z Specifications
Type Description
Series:EPC
Package:Tray
Part Status:Active
Core Type:EPC
Supplier Device Package:EPC 30
Material:PC47
Diameter:-
Inductance Factor (Al):1.57 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:1.35
Effective Length (le) mm:75.3
Effective Area (Ae) mm²:55.6
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:4190
Finish:Uncoated
Height:17.50mm
Length:30.10mm
Width:8.00mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 106
Shipped from
HK warehouse
Expected Shipping Date
Nov 05 - Nov 09 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $3.6100 $3.61
10 $3.0960 $30.96
25 $2.3220 $58.05
50 $2.2576 $112.88
120 $1.9995 $239.94
360 $1.8705 $673.38
600 $1.7415 $1 044.90
1080 $1.6125 $1 741.50

Current price of PC47EPC30-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
