B65525J0000R608

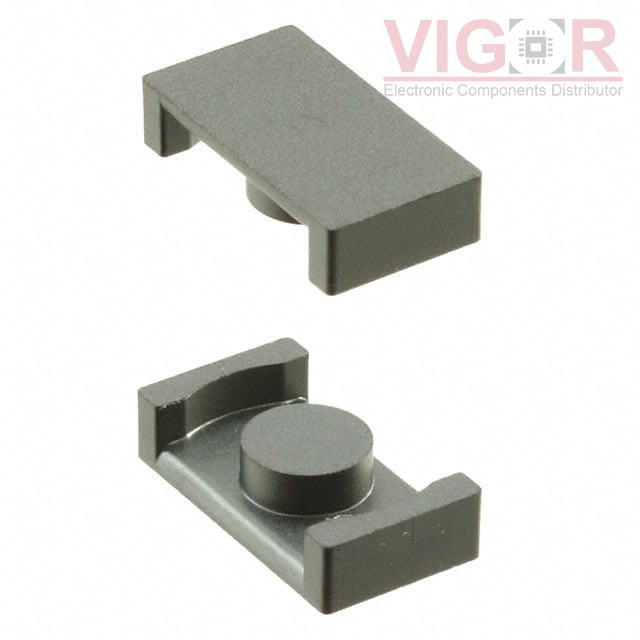

Image is for reference,
please contact us to get the real picture

Part No :: B65525J0000R608

Manufacturer: TDK EPCOS

Description: ER11/5-PC200

Catalog: Ferrite Cores

DataSheet: B65525J0000R608 PDF

Availability: 529 pieces

Unit Price: ~~$0.93000~~

Current price of B65525J0000R608 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65525J0000R608 Specifications

Type	Description
Series:	B65525
Package:	Bulk
Part Status:	Active
Core Type:	ER
Supplier Device Package:	ER 11 x 5
Material:	PC200
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	580
Initial Permeability (µi):	800
Core Factor (ΣI/A) mm^-1:	1.1
Effective Length (le) mm:	14.1
Effective Area (Ae) mm²:	12.4
Minimum Core Cross Section (Amin) mm²:	10.3
Effective Magnetic Volume (Ve) mm³:	174
Finish:	Uncoated
Height:	5.00mm
Length:	11.00mm
Width:	6.00mm
