T60004L2080W628

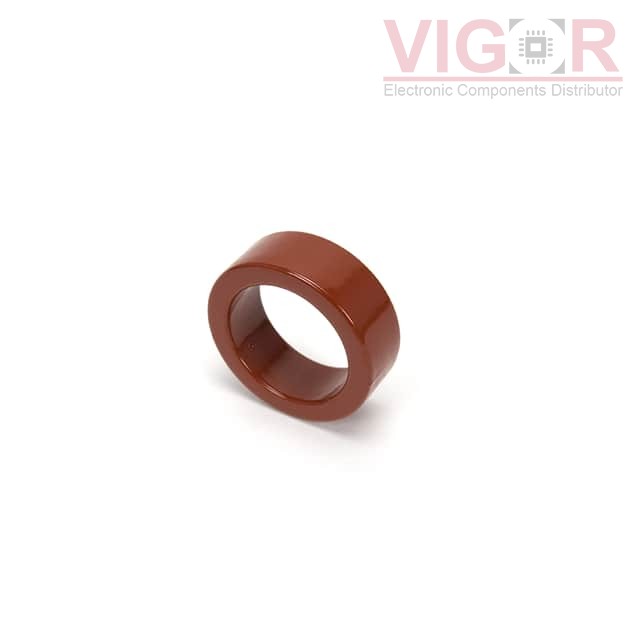

Image is for reference,
please contact us to get the real picture

Part No :: T60004L2080W628

Manufacturer: VACUUMSCHMELZE GmbH & Co. KG.

Description: NANOCRYSTALLINE CORE, 80X63X20,

Catalog: Ferrite Cores

DataSheet: T60004L2080W628 PDF

Availability: 26 pieces

Unit Price: ~~$77.65000~~

Current price of T60004L2080W628 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

T60004L2080W628 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	-
Material:	-
Diameter:	3.268" (83.00mm)
Inductance Factor (Al):	18.5 µH
Tolerance:	-
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	-
Effective Length (le) mm:	225
Effective Area (Ae) mm²:	124
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	-
Finish:	Epoxy
Height:	0.898" (22.80mm)
Length:	-
Width:	-
