B65805J0000R608

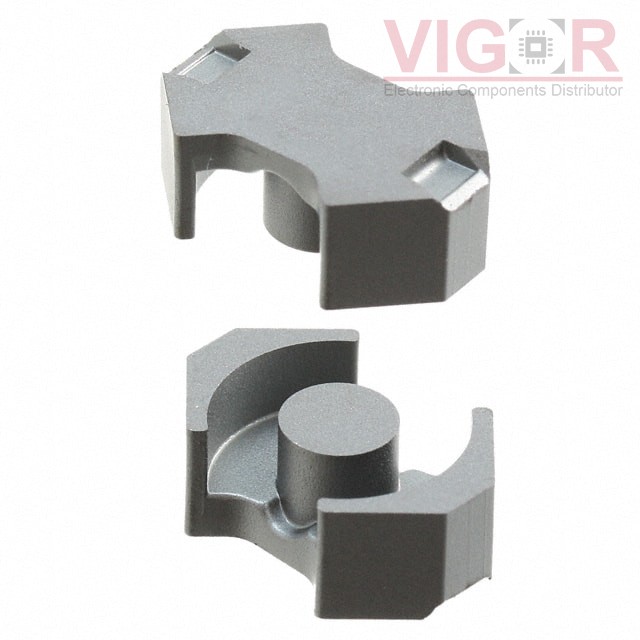

Image is for reference,
please contact us to get the real picture

Part No :: B65805J0000R608

Manufacturer: TDK EPCOS

Description: FERRITE CORE RM PC200 1=2PC

Catalog: Ferrite Cores

DataSheet: B65805J0000R608 PDF

Availability: 109 pieces

Unit Price: ~~$1.46000~~

Current price of B65805J0000R608 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65805J0000R608 Specifications

Type	Description
Series:	B65805
Package:	Bulk
Part Status:	Active
Core Type:	RM
Supplier Device Package:	RM 5
Material:	PC200
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	590
Initial Permeability (µi):	800
Core Factor (ΣI/A) mm^-1:	0.93
Effective Length (le) mm:	22.1
Effective Area (Ae) mm²:	23.8
Minimum Core Cross Section (Amin) mm²:	18
Effective Magnetic Volume (Ve) mm³:	526
Finish:	Uncoated
Height:	10.50mm
Length:	14.60mm
Width:	6.80mm

Please confirm the specifications of the products when ordering.
