B64290L0022X830

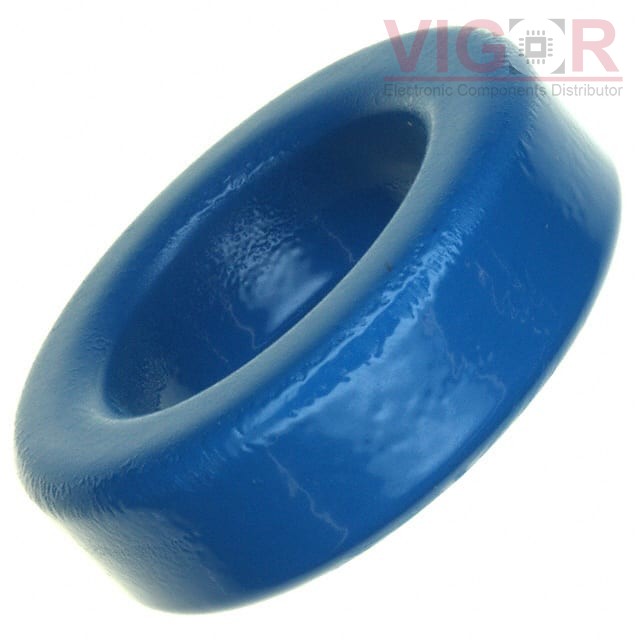

Image is for reference,
please contact us to get the real picture

Part No :: B64290L0022X830

Manufacturer: TDK EPCOS

Description: FERRITE CORE TOROID 5UH N30

Catalog: Ferrite Cores

DataSheet: B64290L0022X830 PDF

Availability: 109 pieces

Unit Price: ~~$4.19000~~

Current price of B64290L0022X830 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B64290L0022X830 Specifications

Type	Description
Series:	B64290
Package:	Tray
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	-
Material:	N30
Diameter:	43.60mm
Inductance Factor (Al):	5 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	4300
Core Factor (ΣI/A) mm^-1:	1.08
Effective Length (le) mm:	103
Effective Area (Ae) mm²:	95.75
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	9862
Finish:	Epoxy
Height:	13.60mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
