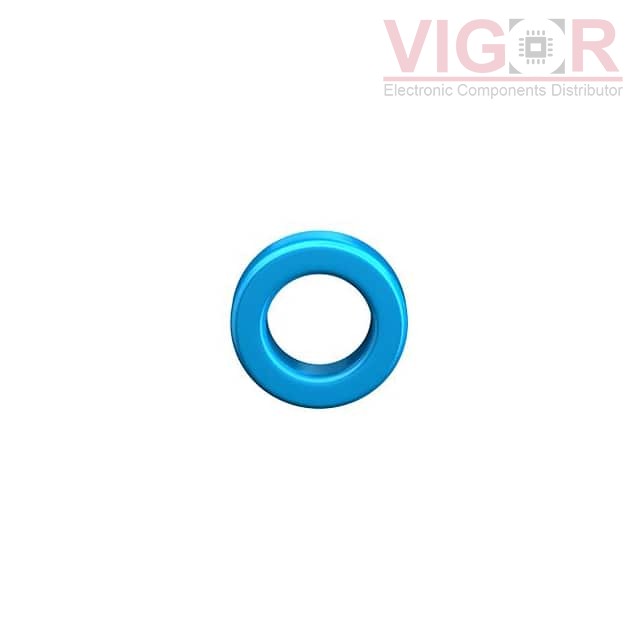

B64290L0696X037

Part No :: B64290L0696X037

Manufacturer: TDK EPCOS

VIGOR # :: 4179020

Description: FERRITE CORE TOROID 5UH T37

Catalog: Ferrite Cores

DataSheet: B64290L0696X037 PDF

Country of origin: -

Date code: -

B64290L0696X037 Specifications

Type	Description
Series:	B64290
Package:	Box
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	-
Material:	T37
Diameter:	70.00mm
Inductance Factor (Al):	5 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	5500
Core Factor (ΣI/A) mm^-1:	1.39
Effective Length (le) mm:	178.6
Effective Area (Ae) mm²:	128.7
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	22980
Finish:	Epoxy
Height:	14.20mm
Length:	-
Width:	-
