B65819J0000R097

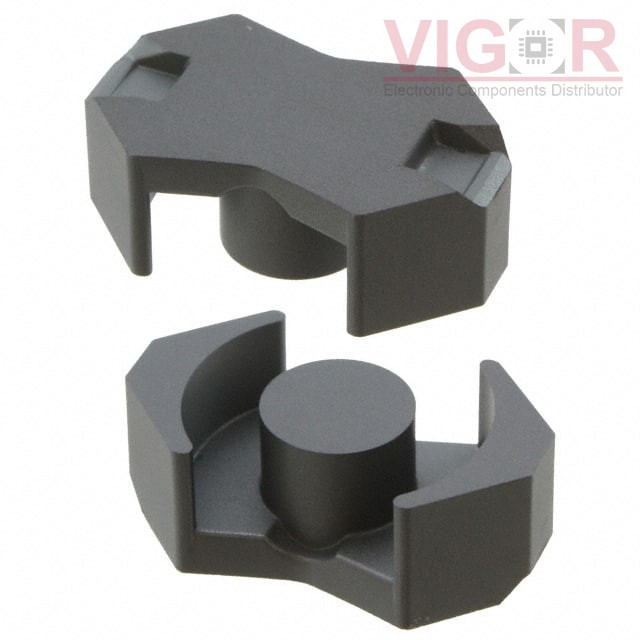

Image is for reference,
please contact us to get the real picture

Part No :: B65819J0000R097

Manufacturer: TDK EPCOS

Description: FERRITE CORE RM 2.7UH N97 2PCS

Catalog: Ferrite Cores

DataSheet: B65819J0000R097 PDF

Availability: 0 pieces

Unit Price: ~~$1.42911~~

Current price of B65819J0000R097 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65819J0000R097 Specifications

Type	Description
Series:	B65819
Package:	Box
Part Status:	Active
Core Type:	RM
Supplier Device Package:	RM 7
Material:	N97
Diameter:	-
Inductance Factor (Al):	2.7 µH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	1520
Initial Permeability (µi):	2300
Core Factor (ΣI/A) mm^-1:	0.7
Effective Length (le) mm:	30.4
Effective Area (Ae) mm²:	43
Minimum Core Cross Section (Amin) mm²:	39
Effective Magnetic Volume (Ve) mm³:	1310
Finish:	Uncoated
Height:	6.75mm
Length:	20.30mm
Width:	-
