B65517W0000Y038

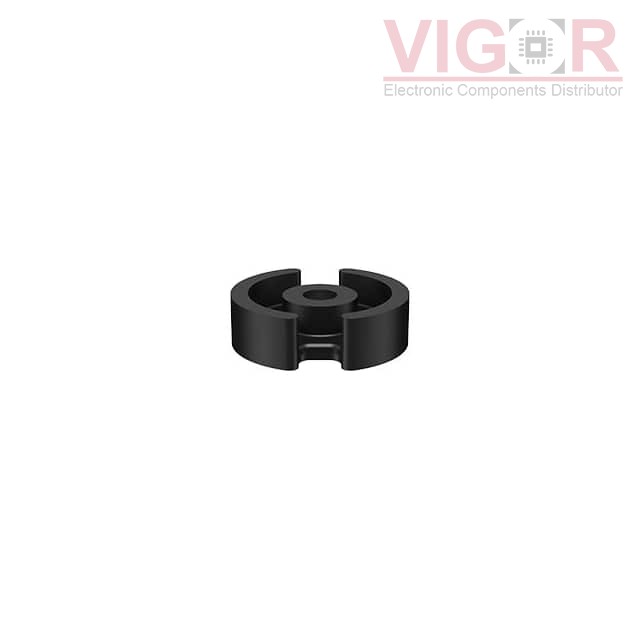

Image is for reference,
please contact us to get the real picture

Part No :: B65517W0000Y038

Manufacturer: TDK EPCOS

Description: FERRITE CORE P 5.5UH T38 2PCS

Catalog: Ferrite Cores

DataSheet: B65517W0000Y038 PDF

Availability: 0 pieces

Unit Price: ~~$0.97595~~

Current price of B65517W0000Y038 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65517W0000Y038 Specifications

Type	Description
Series:	B65517
Package:	Box
Part Status:	Active
Core Type:	P (Pot Core)
Supplier Device Package:	P 9 x 5
Material:	T38
Diameter:	9.30mm
Inductance Factor (Al):	5.5 µH
Tolerance:	-30%, +40%
Gap:	Ungapped
Effective Permeability (µe):	4930
Initial Permeability (µi):	10000
Core Factor (ΣI/A) mm^-1:	1.13
Effective Length (le) mm:	13.4
Effective Area (Ae) mm²:	11.9
Minimum Core Cross Section (Amin) mm²:	9.3
Effective Magnetic Volume (Ve) mm³:	159
Finish:	Uncoated
Height:	2.70mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
