B65815P0000R092

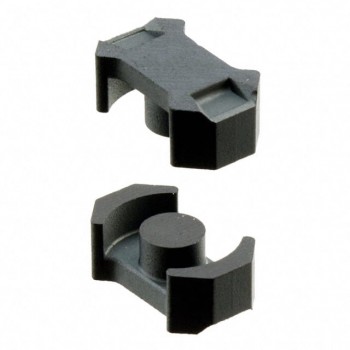

Image is for reference,
please contact us to get the real picture

Part No :: B65815P0000R092

Manufacturer: TDK EPCOS

Description: FERRITE CORE RM 4.8UH N92 2PCS

Catalog: Ferrite Cores

DataSheet: B65815P0000R092 PDF

Availability: 0 pieces

Unit Price: ~~$3.37457~~

Current price of B65815P0000R092 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65815P0000R092 Specifications

Type	Description
Series:	B65815P
Package:	Box
Part Status:	Active
Core Type:	RM
Supplier Device Package:	RM 12 LP
Material:	N92
Diameter:	-
Inductance Factor (Al):	4.8 µH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	1090
Initial Permeability (µi):	1500
Core Factor (ΣI/A) mm^-1:	0.29
Effective Length (le) mm:	42
Effective Area (Ae) mm²:	147.5
Minimum Core Cross Section (Amin) mm²:	124.7
Effective Magnetic Volume (Ve) mm³:	6195
Finish:	Uncoated
Height:	8.40mm
Length:	37.60mm
Width:	16.10mm

Please confirm the specifications of the products when ordering.
