B66413U0160L197

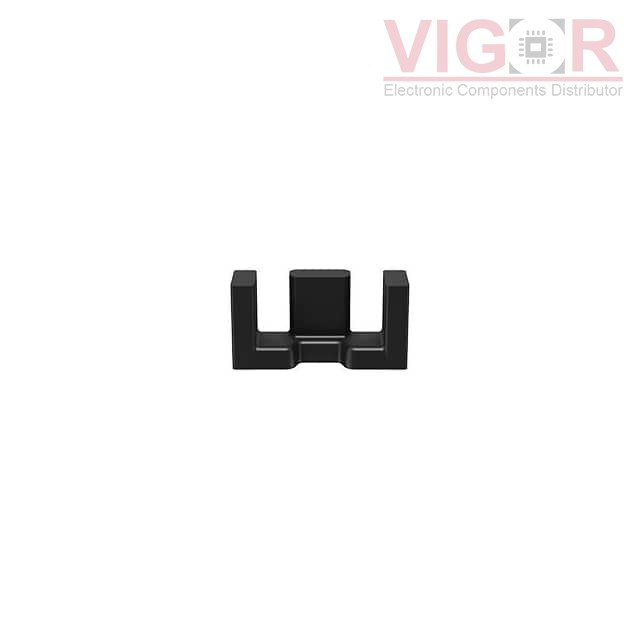

Image is for reference,
please contact us to get the real picture

Part No :: B66413U0160L197

Manufacturer: TDK EPCOS

Description: FERRITE CORE

Catalog: Ferrite Cores

DataSheet: B66413U0160L197 PDF

Availability: 0 pieces

Unit Price: ~~$0.30058~~

Current price of B66413U0160L197 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B66413U0160L197 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Core Type:	EFD
Supplier Device Package:	EFD 15 x 8 x 5
Material:	N97
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-
Gap:	-
Effective Permeability (µe):	-
Initial Permeability (µi):	2300
Core Factor (ΣI/A) mm^-1:	2.27
Effective Length (le) mm:	34
Effective Area (Ae) mm²:	15
Minimum Core Cross Section (Amin) mm²:	12.2
Effective Magnetic Volume (Ve) mm³:	510
Finish:	Uncoated
Height:	7.50mm
Length:	15.00mm
Width:	4.65mm
