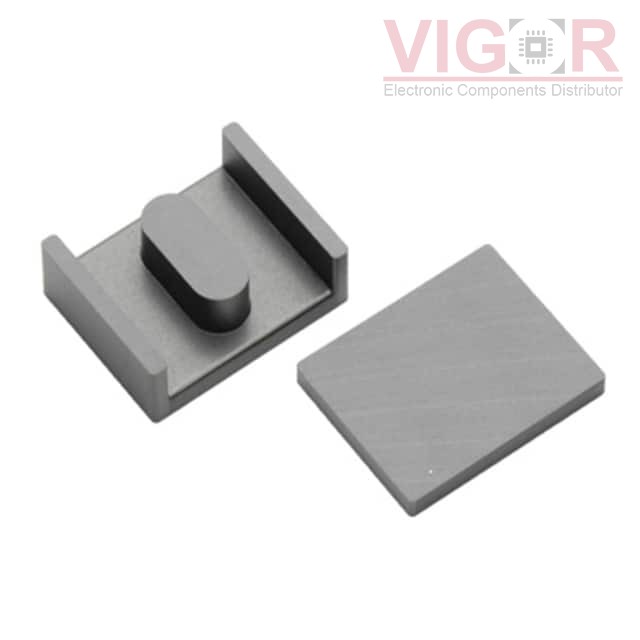

PC95ELT13X4.4-Z

Part No :: PC95ELT13X4.4-Z

Manufacturer: TDK Corporation

Description: FERRITE CORE ELT 3.16UH 1SET

Catalog: Ferrite Cores

DataSheet: PC95ELT13X4.4-Z PDF

Availability: 0 pieces

Current price of PC95ELT13X4.4-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PC95ELT13X4.4-Z Specifications

Type	Description
Series:	Planar
Package:	Tray
Part Status:	Active
Core Type:	ELH, PLT
Supplier Device Package:	ELT 13 x 4.4
Material:	PC95
Diameter:	-
Inductance Factor (Al):	3.16 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.67
Effective Length (le) mm:	23.1
Effective Area (Ae) mm²:	15.4
Minimum Core Cross Section (Amin) mm²:	22.4
Effective Magnetic Volume (Ve) mm³:	357
Finish:	Uncoated
Height:	3.19mm
Length:	13.00mm
Width:	10.40mm
