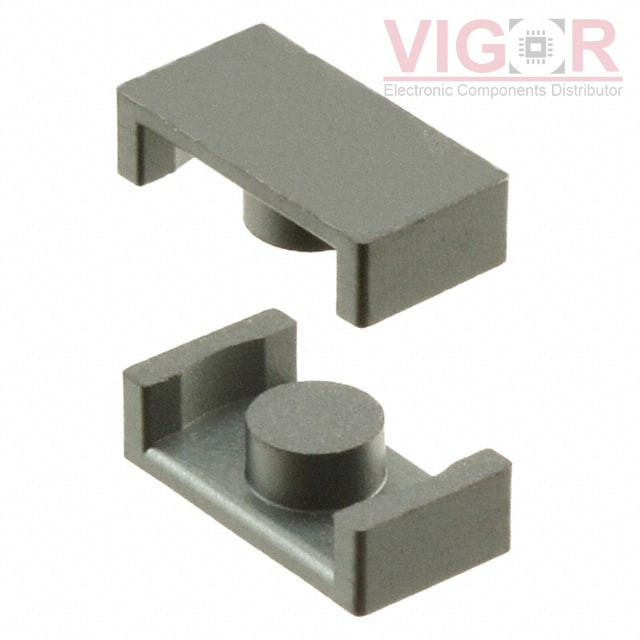

B65523J0000R097

Part No :: B65523J0000R097

Manufacturer: TDK EPCOS

Description: FERRITE CORE ER 840NH N97 2PCS

Catalog: Ferrite Cores

DataSheet: B65523J0000R097 PDF

Availability: 4483 pieces

Current price of B65523J0000R097 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65523J0000R097 Specifications

Type	Description
Series:	B65523
Package:	Box
Part Status:	Active
Core Type:	ER
Supplier Device Package:	ER 9.5 x 5
Material:	N97
Diameter:	-
Inductance Factor (Al):	840 nH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	1032
Initial Permeability (µi):	2300
Core Factor (ΣI/A) mm^-1:	1.54
Effective Length (le) mm:	13.6
Effective Area (Ae) mm²:	8.81
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	120
Finish:	Uncoated
Height:	2.50mm
Length:	9.50mm
Width:	5.00mm
