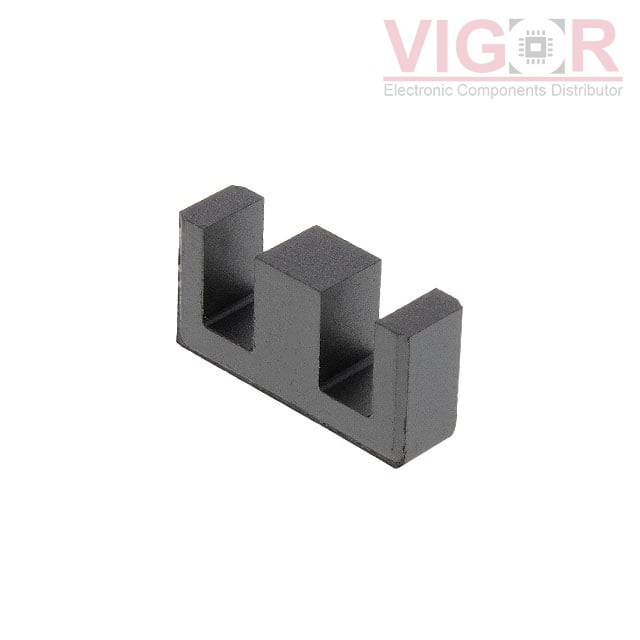

9478102002

Part No :: 9478102002

Manufacturer: Fair-Rite Products Corp.

Description: 78 E CORE SET

Catalog: Ferrite Cores

DataSheet: 9478102002 PDF

Availability: 6589 pieces

Current price of 9478102002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

9478102002 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Core Type:	E
Supplier Device Package:	-
Material:	78
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	2300
Core Factor (ΣI/A) mm^-1:	234
Effective Length (le) mm:	29.6
Effective Area (Ae) mm²:	12.7
Minimum Core Cross Section (Amin) mm²:	12.2
Effective Magnetic Volume (Ve) mm³:	376
Finish:	Uncoated
Height:	6.35mm
Length:	12.70mm
Width:	-
