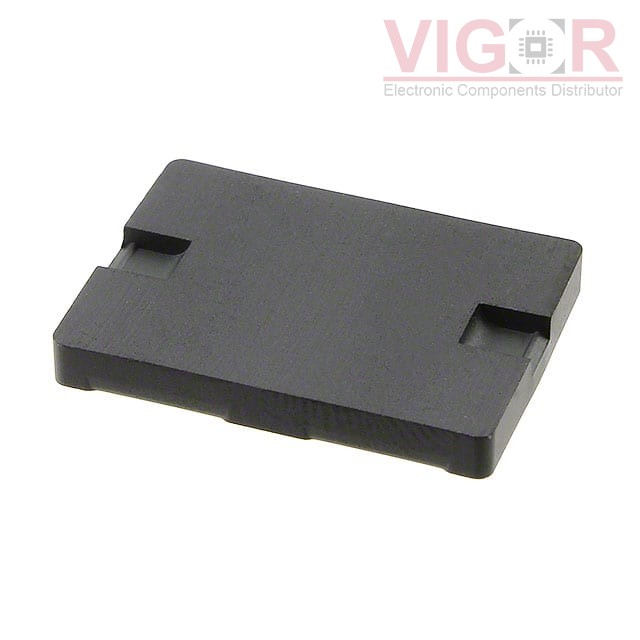

B66285K0000X192

Part No :: B66285K0000X192

Manufacturer: TDK EPCOS

Description: FERRITE CORE I N92

Catalog: Ferrite Cores

DataSheet: B66285K0000X192 PDF

Availability: 421 pieces

Current price of B66285K0000X192 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B66285K0000X192 Specifications

Type	Description
Series:	B66285
Package:	Tray
Part Status:	Active
Core Type:	I
Supplier Device Package:	I 22 x 2.5 x 16
Material:	N92
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	-
Effective Length (le) mm:	-
Effective Area (Ae) mm²:	-
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	-
Finish:	Uncoated
Height:	2.50mm
Length:	21.80mm
Width:	15.80mm
