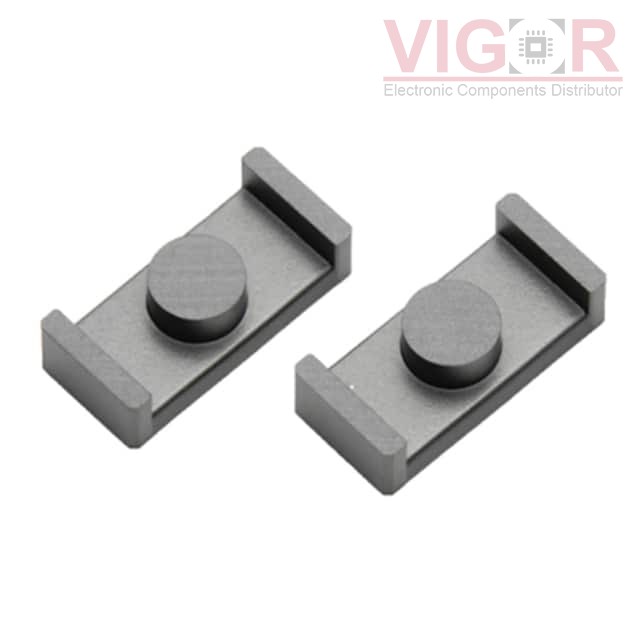

PC95ER22/5.5/15-Z

Part No :: PC95ER22/5.5/15-Z

Manufacturer: TDK Corporation

VIGOR # :: 4179313

Description: FERRITE CORE ER 4.3UH 2PC SET

Catalog: Ferrite Cores

DataSheet: PC95ER22/5.5/15-Z PDF

Country of origin: -

Date code: -

PC95ER22/5.5/15-Z Specifications

Type	Description
Series:	Planar
Package:	Tray
Part Status:	Active
Core Type:	ER
Supplier Device Package:	ER 22 x 5.5 x 15
Material:	PC95
Diameter:	-
Inductance Factor (Al):	4.3 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.51
Effective Length (le) mm:	46.1
Effective Area (Ae) mm²:	23.2
Minimum Core Cross Section (Amin) mm²:	36.3
Effective Magnetic Volume (Ve) mm³:	1070
Finish:	Uncoated
Height:	2.75mm
Length:	22.10mm
Width:	15.25mm
