7878400421

Part No :: 7878400421

Manufacturer: Fair-Rite Products Corp.

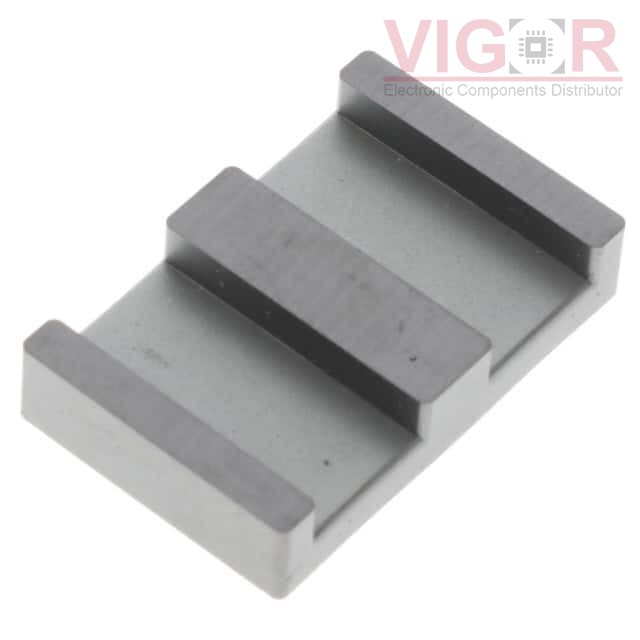

Description: 78 PLANAR EI CORE SET

Catalog: Ferrite Cores

DataSheet: 7878400421 PDF

Availability: 391 pieces

Current price of 7878400421 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

7878400421 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Core Type:	E
Supplier Device Package:	-
Material:	78
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	2300
Core Factor (ΣI/A) mm^-1:	27
Effective Length (le) mm:	35.2
Effective Area (Ae) mm²:	130
Minimum Core Cross Section (Amin) mm²:	129
Effective Magnetic Volume (Ve) mm³:	4570
Finish:	Uncoated
Height:	6.35mm
Length:	31.75mm
Width:	20.32mm
