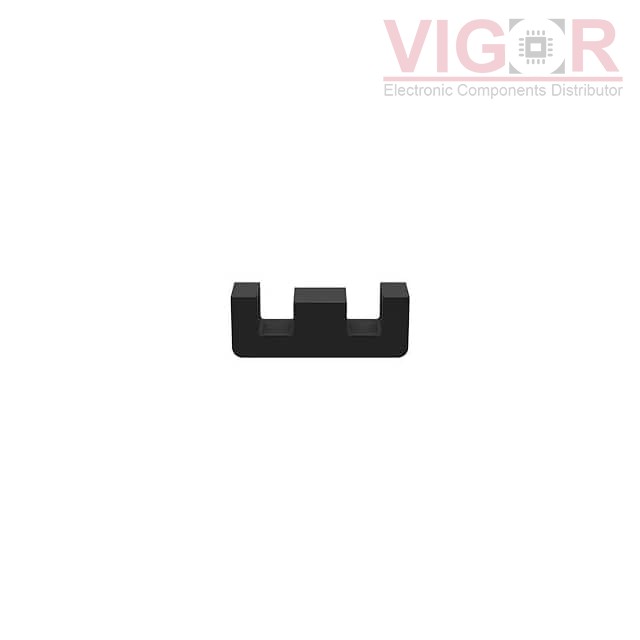

B66302G0000X149

Part No :: B66302G0000X149

Manufacturer: TDK EPCOS

Description: FERRITE CORE

Catalog: Ferrite Cores

DataSheet: B66302G0000X149 PDF

Availability: 0 pieces

Current price of B66302G0000X149 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B66302G0000X149 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Core Type:	E
Supplier Device Package:	E 8 x 8
Material:	N49
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	760
Initial Permeability (µi):	1500
Core Factor (ΣI/A) mm^-1:	3.1
Effective Length (le) mm:	15.5
Effective Area (Ae) mm²:	5
Minimum Core Cross Section (Amin) mm²:	3.6
Effective Magnetic Volume (Ve) mm³:	78
Finish:	Uncoated
Height:	4.10mm
Length:	9.00mm
Width:	2.00mm

Please confirm the specifications of the products when ordering.
