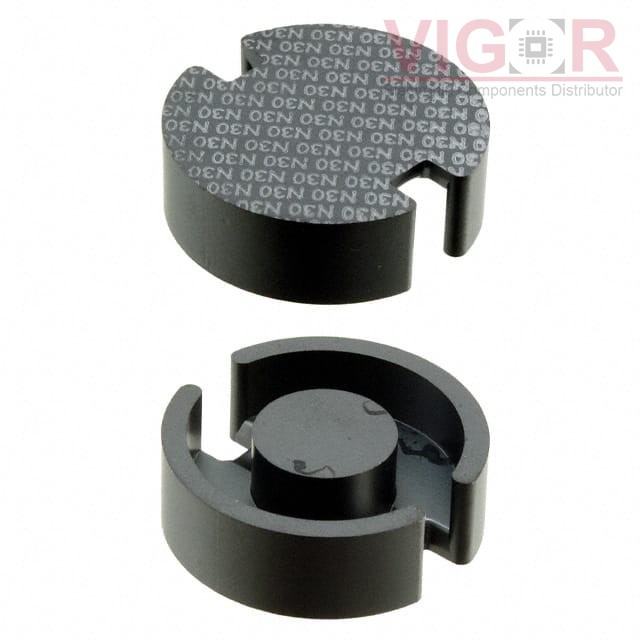

B65671W0000R030

Part No :: B65671W0000R030

Manufacturer: TDK EPCOS

Description: FERRITE CORE P 9.7UH N30 2PCS

Catalog: Ferrite Cores

DataSheet: B65671W0000R030 PDF

Availability: 161 pieces

Current price of B65671W0000R030 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65671W0000R030 Specifications

Type	Description
Series:	B65671
Package:	Box
Part Status:	Active
Core Type:	P (Pot Core)
Supplier Device Package:	P 26 x 16
Material:	N30
Diameter:	26.00mm
Inductance Factor (Al):	9.7 µH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	2860
Initial Permeability (µi):	4300
Core Factor (ΣI/A) mm^-1:	0.37
Effective Length (le) mm:	40
Effective Area (Ae) mm²:	108
Minimum Core Cross Section (Amin) mm²:	87
Effective Magnetic Volume (Ve) mm³:	4320
Finish:	Uncoated
Height:	8.15mm
Length:	-
Width:	-
