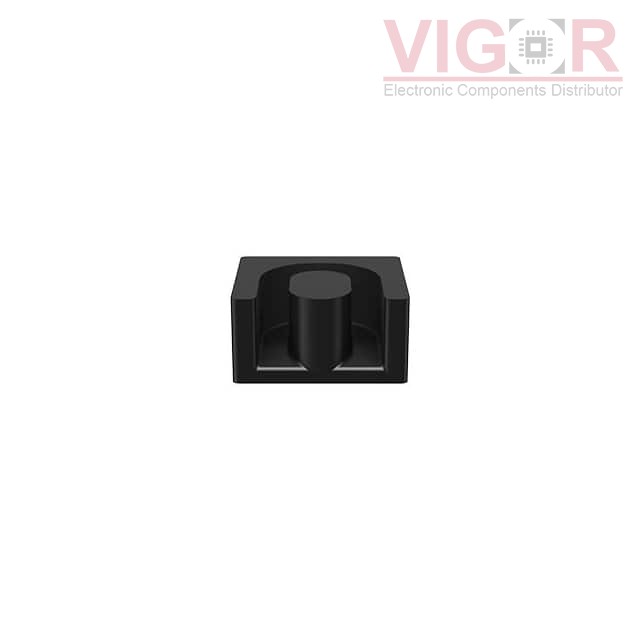

B65857C0000R057

Part No :: B65857C0000R057

Manufacturer: TDK EPCOS

Description: FERRITE CORE EPX 2.4UH T57 2PCS

Catalog: Ferrite Cores

DataSheet: B65857C0000R057 PDF

Availability: 0 pieces

Current price of B65857C0000R057 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65857C0000R057 Specifications

Type	Description
Series:	B65857C
Package:	Box
Part Status:	Active
Core Type:	EPX
Supplier Device Package:	EPX 9 x 9
Material:	T57
Diameter:	-
Inductance Factor (Al):	2.4 µH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	2070
Initial Permeability (µi):	4000
Core Factor (ΣI/A) mm^-1:	1.09
Effective Length (le) mm:	19
Effective Area (Ae) mm²:	17.5
Minimum Core Cross Section (Amin) mm²:	13.9
Effective Magnetic Volume (Ve) mm³:	333
Finish:	Uncoated
Height:	4.75mm
Length:	9.40mm
Width:	9.00mm
