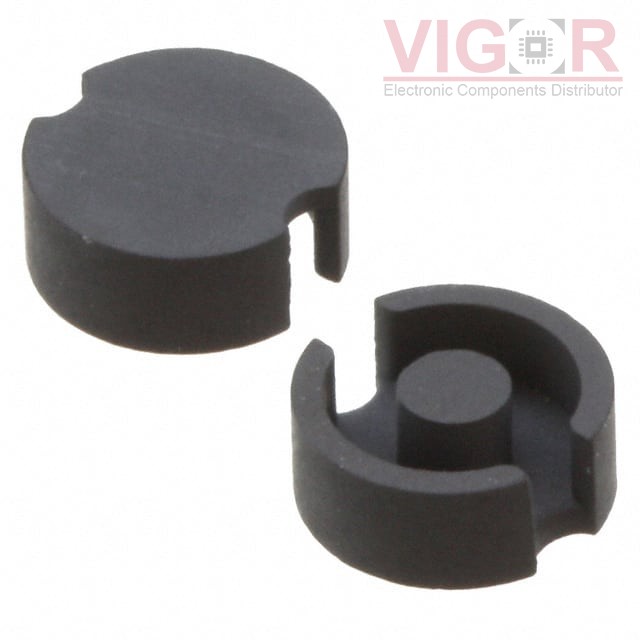

B65491C0000Y001

Part No :: B65491C0000Y001

Manufacturer: TDK EPCOS

Description: FERRITE CORE P 25NH K1 2PCS

Catalog: Ferrite Cores

DataSheet: B65491C0000Y001 PDF

Availability: 1983 pieces

Current price of B65491C0000Y001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65491C0000Y001 Specifications

Type	Description
Series:	B65491
Package:	Box
Part Status:	Active
Core Type:	P (Pot Core)
Supplier Device Package:	P 3.3 x 2.6
Material:	K1
Diameter:	3.35mm
Inductance Factor (Al):	25 nH
Tolerance:	-30%, +40%
Gap:	Ungapped
Effective Permeability (µe):	75
Initial Permeability (µi):	80
Core Factor (ΣI/A) mm^-1:	3.72
Effective Length (le) mm:	5.1
Effective Area (Ae) mm²:	1.37
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	7
Finish:	Uncoated
Height:	1.30mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
