B65841A0000R087

Part No :: B65841A0000R087

Manufacturer: TDK EPCOS

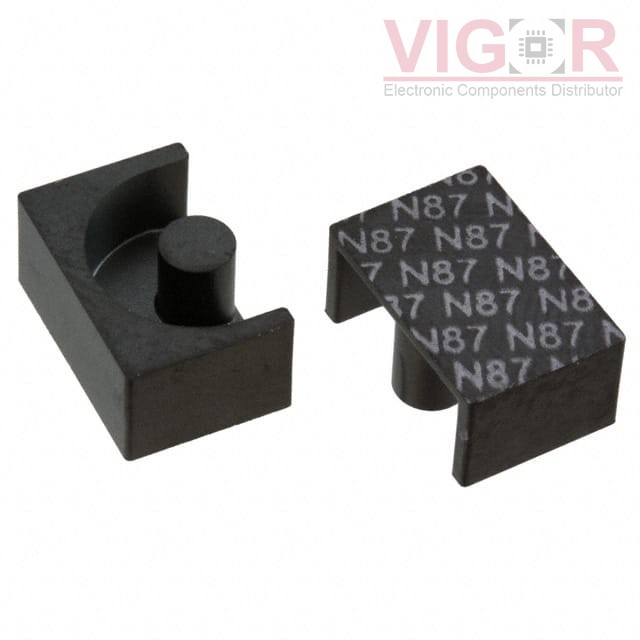

Description: FERRITE CORE EP 1.1UH N87 2PCS

Catalog: Ferrite Cores

DataSheet: B65841A0000R087 PDF

Availability: 940 pieces

Current price of B65841A0000R087 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65841A0000R087 Specifications

Type	Description
Series:	B65841
Package:	Box
Part Status:	Active
Core Type:	EP
Supplier Device Package:	EP 10
Material:	N87
Diameter:	-
Inductance Factor (Al):	1.1 µH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	1480
Initial Permeability (µi):	2200
Core Factor (ΣI/A) mm^-1:	1.7
Effective Length (le) mm:	19.2
Effective Area (Ae) mm²:	11.3
Minimum Core Cross Section (Amin) mm²:	8.5
Effective Magnetic Volume (Ve) mm³:	217
Finish:	Uncoated
Height:	5.20mm
Length:	11.80mm
Width:	7.85mm
