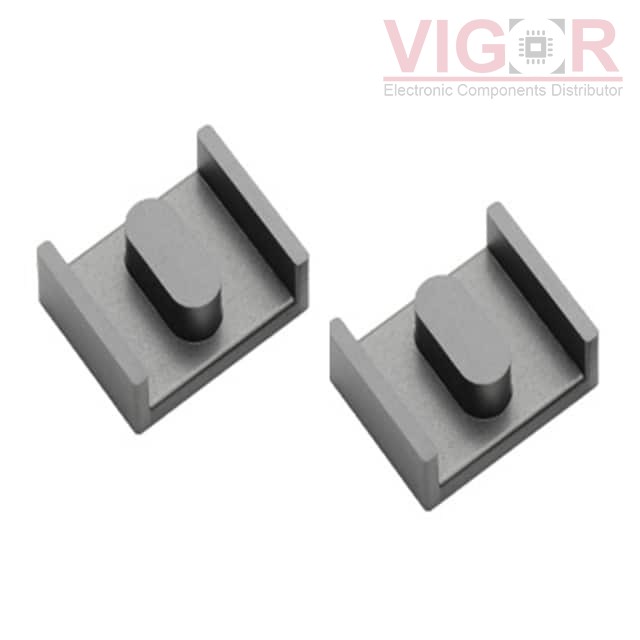

PC95EL25X8.6-Z

Product image
Product thumb
Part No :

PC95EL25X8.6-Z

Manufacturer
TDK Corporation
VIGOR # :

4179521

Description
FERRITE CORE EL 7.54UH 2PC SET
Catalog
Ferrite Cores
DataSheet
PC95EL25X8.6-Z PDF
Country of origin
-
Date code
-
ads
PC95EL25X8.6-Z Specifications
Type Description
Series:Planar
Package:Tray
Part Status:Active
Core Type:EL
Supplier Device Package:EL 25 x 8.6
Material:PC95
Diameter:-
Inductance Factor (Al):7.54 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.35
Effective Length (le) mm:85.6
Effective Area (Ae) mm²:30
Minimum Core Cross Section (Amin) mm²:83
Effective Magnetic Volume (Ve) mm³:2570
Finish:Uncoated
Height:4.29mm
Length:25.00mm
Width:20.00mm
