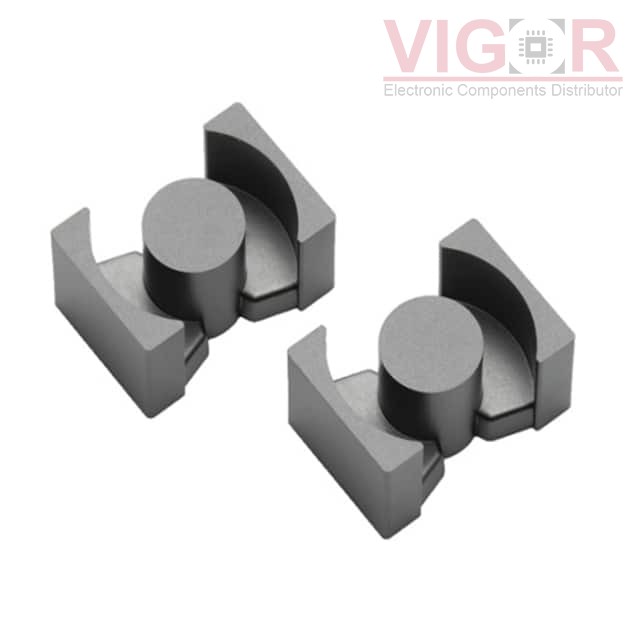

PC95PQ60/52-Z

Part No :: PC95PQ60/52-Z

Manufacturer: TDK Corporation

Description: FERRITE CORE PQ 11.2UH 2PC SET

Catalog: Ferrite Cores

DataSheet: PC95PQ60/52-Z PDF

Availability: 20 pieces

Current price of PC95PQ60/52-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PC95PQ60/52-Z Specifications

Type	Description
Series:	Large PQ
Package:	Tray
Part Status:	Active
Core Type:	PQ
Supplier Device Package:	PQ 60 x 52
Material:	PC95
Diameter:	-
Inductance Factor (Al):	11.2 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.25
Effective Length (le) mm:	118
Effective Area (Ae) mm²:	477
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	56237
Finish:	Uncoated
Height:	51.50mm
Length:	59.00mm
Width:	39.00mm
