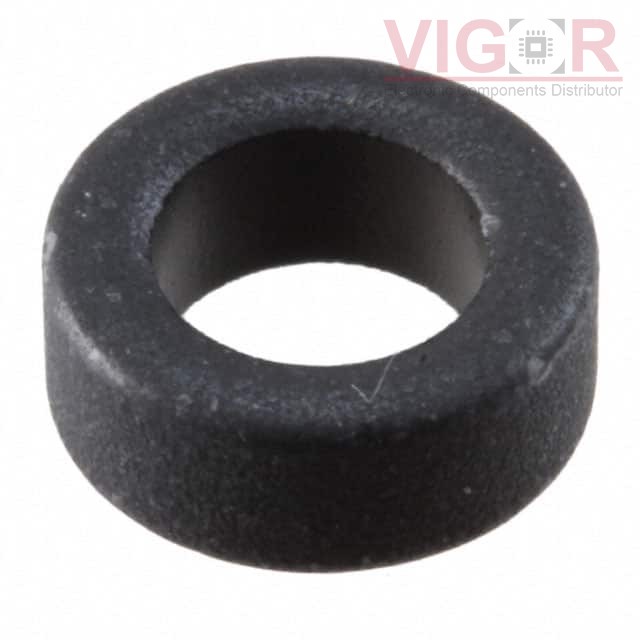

B64290P0687X830

Part No :: B64290P0687X830

Manufacturer: TDK EPCOS

Description: FERRITE CORE TOROID 1.68UH N30

Catalog: Ferrite Cores

DataSheet: B64290P0687X830 PDF

Availability: 0 pieces

Current price of B64290P0687X830 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B64290P0687X830 Specifications

Type	Description
Series:	B64290
Package:	Box
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	-
Material:	N30
Diameter:	5.86mm
Inductance Factor (Al):	1.68 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	4300
Core Factor (ΣI/A) mm^-1:	3.22
Effective Length (le) mm:	13.03
Effective Area (Ae) mm²:	4.04
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	52.6
Finish:	Parylene
Height:	3.02mm
Length:	-
Width:	-
