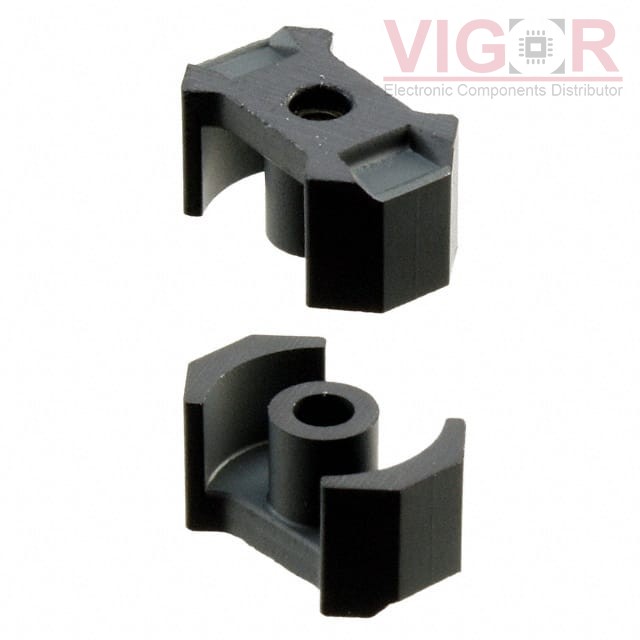

B65803N0063A033

Part No :: B65803N0063A033

Manufacturer: TDK EPCOS

Description: FERRITE CORE RM 63NH M33 2PCS

Catalog: Ferrite Cores

DataSheet: B65803N0063A033 PDF

Availability: 1529 pieces

Current price of B65803N0063A033 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65803N0063A033 Specifications

Type	Description
Series:	B65803
Package:	Box
Part Status:	Active
Core Type:	RM
Supplier Device Package:	RM 4
Material:	M33
Diameter:	-
Inductance Factor (Al):	63 nH
Tolerance:	±3%
Gap:	Gapped
Effective Permeability (µe):	96
Initial Permeability (µi):	750
Core Factor (ΣI/A) mm^-1:	1.9
Effective Length (le) mm:	21
Effective Area (Ae) mm²:	11
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	231
Finish:	Uncoated
Height:	5.25mm
Length:	11.00mm
Width:	4.60mm
