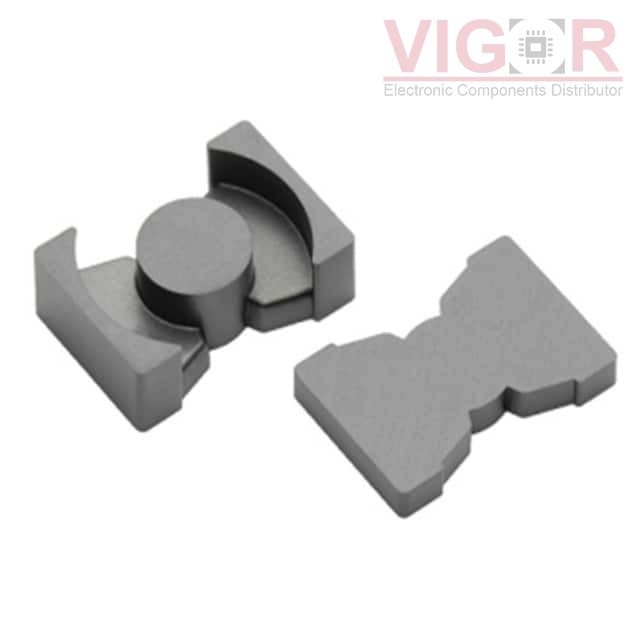

PC95PQI16/7.8Z-12

Part No :: PC95PQI16/7.8Z-12

Manufacturer: TDK Corporation

Description: FERRITE CORE PQI 4.91UH 1SET

Catalog: Ferrite Cores

DataSheet: PC95PQI16/7.8Z-12 PDF

Availability: 497 pieces

Current price of PC95PQI16/7.8Z-12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PC95PQI16/7.8Z-12 Specifications

Type	Description
Series:	Planar
Package:	Tray
Part Status:	Active
Core Type:	HPQ, PQD
Supplier Device Package:	PQI 16 x 7.8
Material:	PC95
Diameter:	-
Inductance Factor (Al):	4.91 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.47
Effective Length (le) mm:	41.8
Effective Area (Ae) mm²:	19.5
Minimum Core Cross Section (Amin) mm²:	37.6
Effective Magnetic Volume (Ve) mm³:	815
Finish:	Uncoated
Height:	5.40mm
Length:	16.40mm
Width:	11.20mm
