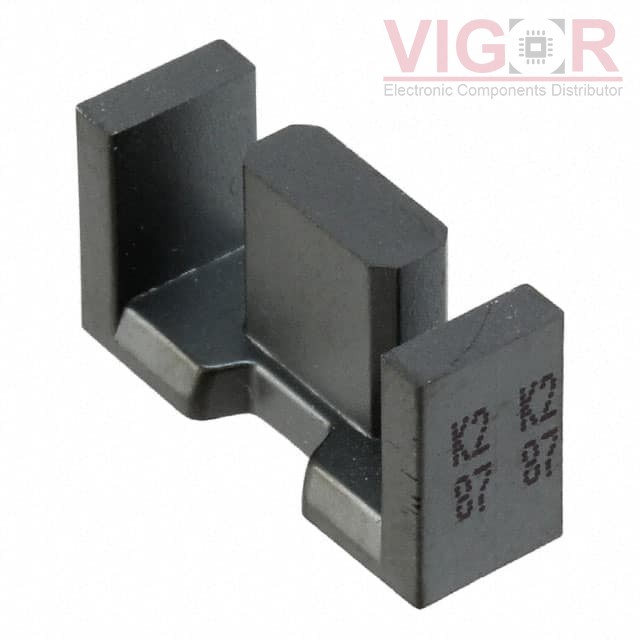

B66417G0000X197

Part No :: B66417G0000X197

Manufacturer: TDK EPCOS

Description: FERRITE CORE EFD N97 1PC

Catalog: Ferrite Cores

DataSheet: B66417G0000X197 PDF

Availability: 0 pieces

Current price of B66417G0000X197 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B66417G0000X197 Specifications

Type	Description
Series:	B66417
Package:	Box
Part Status:	Active
Core Type:	EFD
Supplier Device Package:	EFD 20 x 10 x 7
Material:	N97
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	-
Effective Length (le) mm:	-
Effective Area (Ae) mm²:	-
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	-
Finish:	Uncoated
Height:	10.00mm
Length:	20.00mm
Width:	6.65mm
