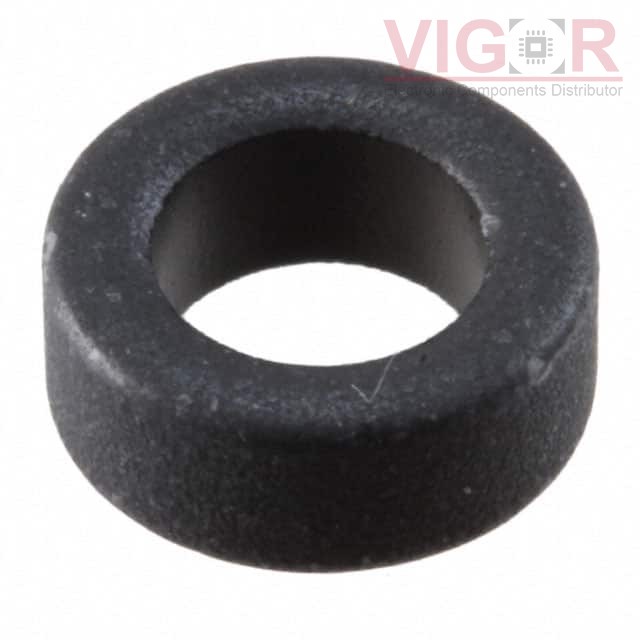

B64290P0037X001

Part No :: B64290P0037X001

Manufacturer: TDK EPCOS

Description: FERRITE CORE TOROID 20NH K1

Catalog: Ferrite Cores

DataSheet: B64290P0037X001 PDF

Availability: 11444 pieces

Current price of B64290P0037X001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B64290P0037X001 Specifications

Type	Description
Series:	B64290
Package:	Box
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	-
Material:	K1
Diameter:	6.32mm
Inductance Factor (Al):	20 nH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	80
Core Factor (ΣI/A) mm^-1:	4.97
Effective Length (le) mm:	15.21
Effective Area (Ae) mm²:	3.06
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	46.5
Finish:	Parylene
Height:	2.52mm
Length:	-
Width:	-
