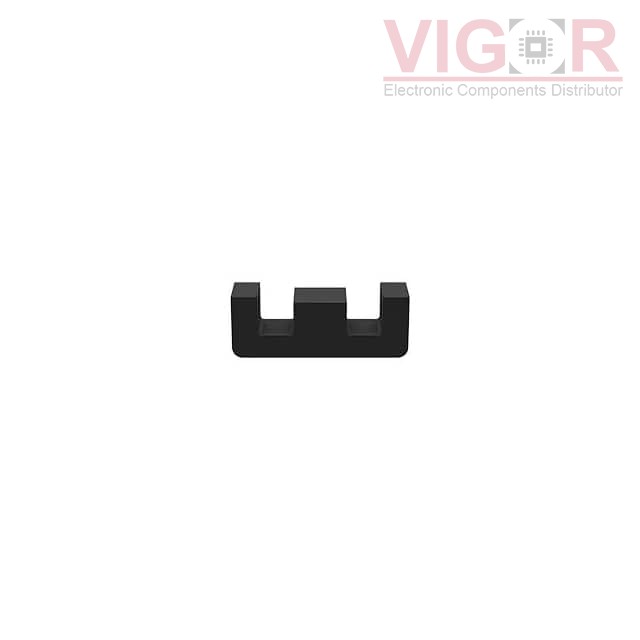

B66305G0000X165

Part No :: B66305G0000X165

Manufacturer: TDK EPCOS

Description: FERRITE CORE

Catalog: Ferrite Cores

DataSheet: B66305G0000X165 PDF

Availability: 0 pieces

Current price of B66305G0000X165 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B66305G0000X165 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Core Type:	E
Supplier Device Package:	E 13 x 7 x 4
Material:	T65
Diameter:	-
Inductance Factor (Al):	1.3 µH
Tolerance:	±30%
Gap:	Ungapped
Effective Permeability (µe):	2470
Initial Permeability (µi):	5200
Core Factor (ΣI/A) mm^-1:	2.39
Effective Length (le) mm:	29.6
Effective Area (Ae) mm²:	12.4
Minimum Core Cross Section (Amin) mm²:	12.2
Effective Magnetic Volume (Ve) mm³:	367
Finish:	Uncoated
Height:	6.50mm
Length:	12.60mm
Width:	3.70mm

Please confirm the specifications of the products when ordering.
