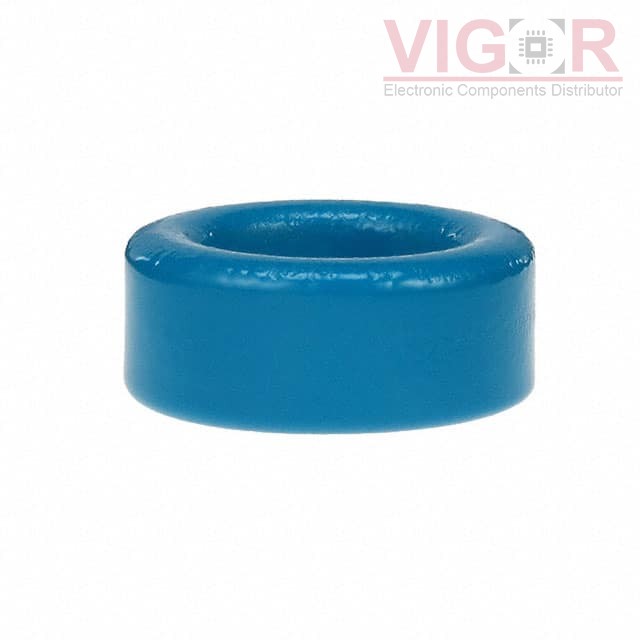

B64290L0626X830

Part No :: B64290L0626X830

Manufacturer: TDK EPCOS

Description: FERRITE CORE TOROID 3.42UH N30

Catalog: Ferrite Cores

DataSheet: B64290L0626X830 PDF

Availability: 320 pieces

Current price of B64290L0626X830 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B64290L0626X830 Specifications

Type	Description
Series:	B64290
Package:	Box
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	-
Material:	N30
Diameter:	23.80mm
Inductance Factor (Al):	3.42 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	4300
Core Factor (ΣI/A) mm^-1:	1.59
Effective Length (le) mm:	56.82
Effective Area (Ae) mm²:	35.78
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	2033
Finish:	Epoxy
Height:	10.20mm
Length:	-
Width:	-
