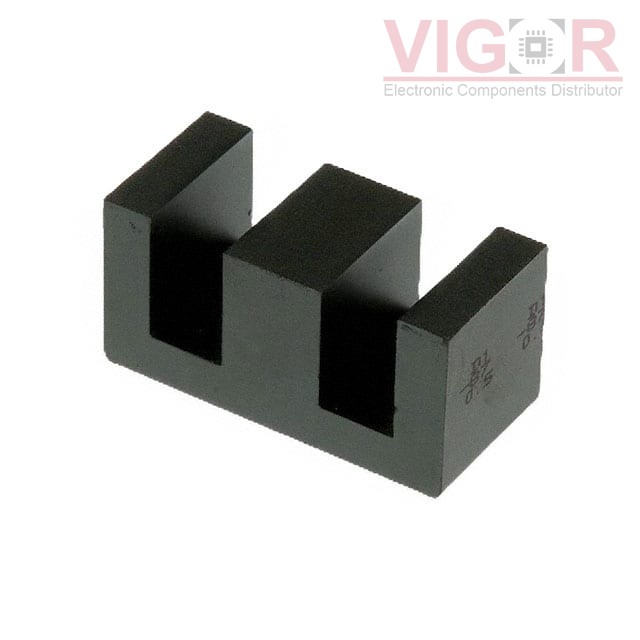

B66329G0500X187

Part No :: B66329G0500X187

Manufacturer: TDK EPCOS

Description: FERRITE CORE

Catalog: Ferrite Cores

DataSheet: B66329G0500X187 PDF

Availability: 622 pieces

Current price of B66329G0500X187 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B66329G0500X187 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Core Type:	E
Supplier Device Package:	E 42 x 21 x 20
Material:	N87
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-
Gap:	-
Effective Permeability (µe):	-
Initial Permeability (µi):	2200
Core Factor (ΣI/A) mm^-1:	0.41
Effective Length (le) mm:	97
Effective Area (Ae) mm²:	234
Minimum Core Cross Section (Amin) mm²:	229
Effective Magnetic Volume (Ve) mm³:	22700
Finish:	Uncoated
Height:	21.20mm
Length:	42.00mm
Width:	20.00mm

Please confirm the specifications of the products when ordering.
