7895400721

Part No :: 7895400721

Manufacturer: Fair-Rite Products Corp.

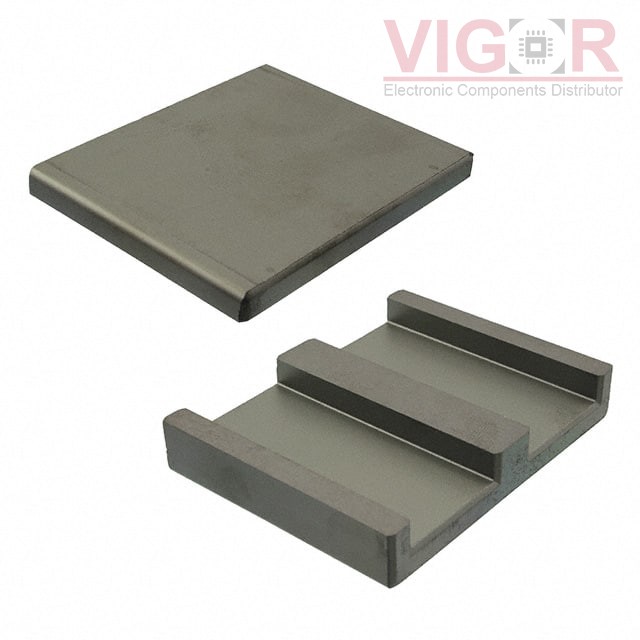

Description: 95 PLANAR EI CORE SET

Catalog: Ferrite Cores

DataSheet: 7895400721 PDF

Availability: 36 pieces

Current price of 7895400721 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

7895400721 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Core Type:	Planar E/I
Supplier Device Package:	-
Material:	95
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	3000
Core Factor (ΣI/A) mm^-1:	14
Effective Length (le) mm:	70
Effective Area (Ae) mm²:	518
Minimum Core Cross Section (Amin) mm²:	515
Effective Magnetic Volume (Ve) mm³:	36300
Finish:	Uncoated
Height:	10.34mm
Length:	64.01mm
Width:	51.00mm

Please confirm the specifications of the products when ordering.
