B65811J0000R087

Part No :: B65811J0000R087

Manufacturer: TDK EPCOS

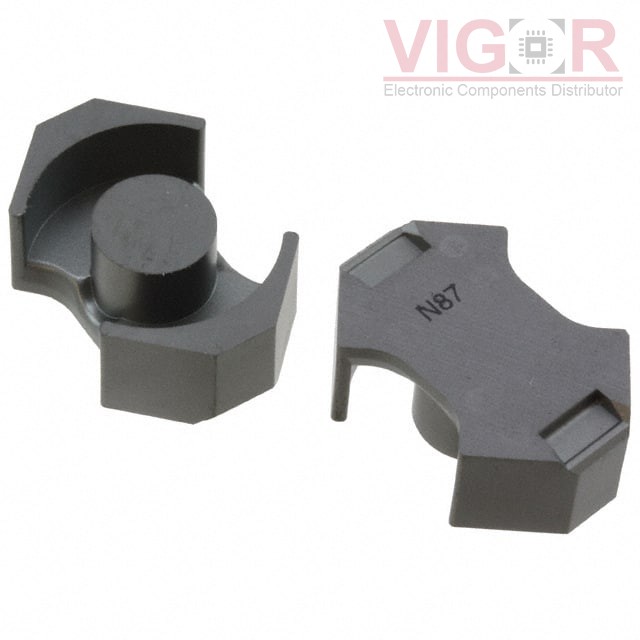

Description: FERRITE CORE RM 3.3UH N87 2PCS

Catalog: Ferrite Cores

DataSheet: B65811J0000R087 PDF

Availability: 233 pieces

Current price of B65811J0000R087 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65811J0000R087 Specifications

Type	Description
Series:	B65811
Package:	Box
Part Status:	Active
Core Type:	RM
Supplier Device Package:	RM 8
Material:	N87
Diameter:	-
Inductance Factor (Al):	3.3 µH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	1560
Initial Permeability (µi):	2200
Core Factor (ΣI/A) mm^-1:	0.59
Effective Length (le) mm:	38
Effective Area (Ae) mm²:	64
Minimum Core Cross Section (Amin) mm²:	55
Effective Magnetic Volume (Ve) mm³:	2430
Finish:	Uncoated
Height:	8.25mm
Length:	23.20mm
Width:	11.00mm
