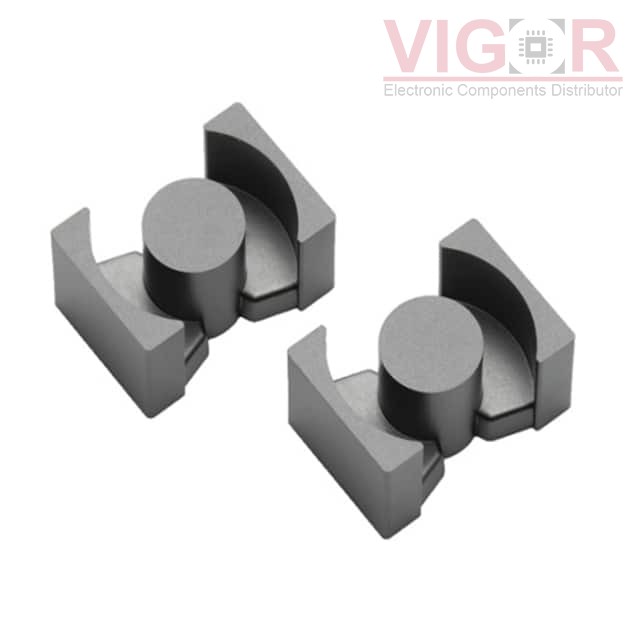

PC95PQ35/35Z-12

Part No :: PC95PQ35/35Z-12

Manufacturer: TDK Corporation

Description: FERRITE CORE PQ 7.32UH 2PC SET

Catalog: Ferrite Cores

DataSheet: PC95PQ35/35Z-12 PDF

Availability: 127 pieces

Current price of PC95PQ35/35Z-12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PC95PQ35/35Z-12 Specifications

Type	Description
Series:	PQ
Package:	Tray
Part Status:	Active
Core Type:	PQ
Supplier Device Package:	PQ 35 x 35
Material:	PC95
Diameter:	-
Inductance Factor (Al):	7.32 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.45
Effective Length (le) mm:	87.9
Effective Area (Ae) mm²:	196
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	17300
Finish:	Uncoated
Height:	34.75mm
Length:	35.10mm
Width:	26.00mm

Please confirm the specifications of the products when ordering.
