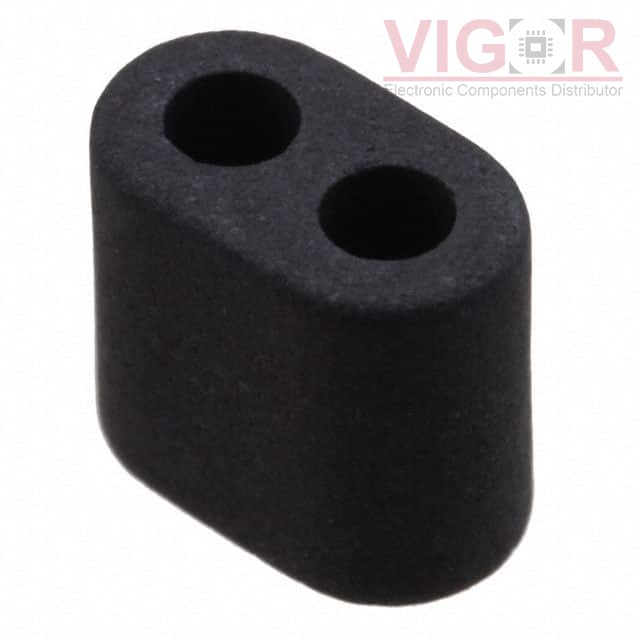

B62152A0007X001

Part No :: B62152A0007X001

Manufacturer: TDK EPCOS

Description: FERRITE CORE 2 HOLE 140NH K1

Catalog: Ferrite Cores

DataSheet: B62152A0007X001 PDF

Availability: 4626 pieces

Current price of B62152A0007X001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B62152A0007X001 Specifications

Type	Description
Series:	B62152
Package:	Box
Part Status:	Active
Core Type:	Multi-Hole (2)
Supplier Device Package:	-
Material:	K1
Diameter:	-
Inductance Factor (Al):	140 nH
Tolerance:	±30%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	80
Core Factor (ΣI/A) mm^-1:	0.75
Effective Length (le) mm:	7.6
Effective Area (Ae) mm²:	10.2
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	78
Finish:	Uncoated
Height:	6.20mm
Length:	7.25mm
Width:	4.20mm
