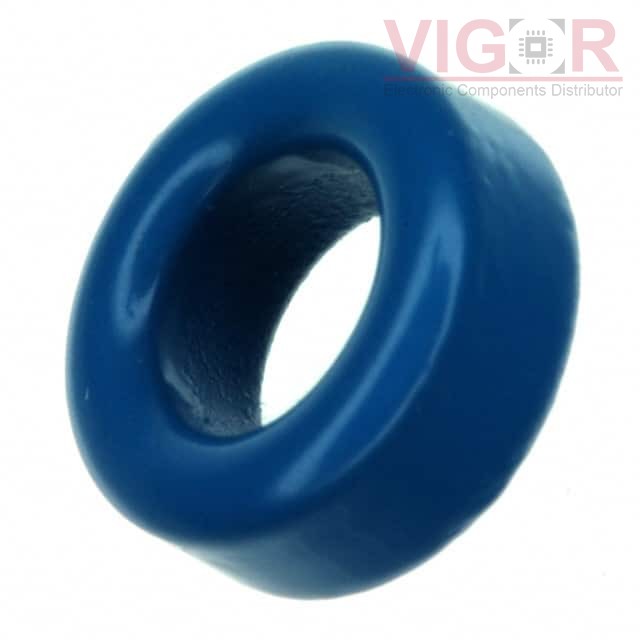

B64290L0038X046

Part No :: B64290L0038X046

Manufacturer: TDK EPCOS

Description: FERRITE CORE TOROID 6UH T46

Catalog: Ferrite Cores

DataSheet: B64290L0038X046 PDF

Availability: 6378 pieces

Current price of B64290L0038X046 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B64290L0038X046 Specifications

Type	Description
Series:	B64290
Package:	Box
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	-
Material:	T46
Diameter:	10.80mm
Inductance Factor (Al):	6 µH
Tolerance:	±30%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	15000
Core Factor (ΣI/A) mm^-1:	3.07
Effective Length (le) mm:	24.07
Effective Area (Ae) mm²:	7.83
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	188
Finish:	Epoxy
Height:	4.75mm
Length:	-
Width:	-
