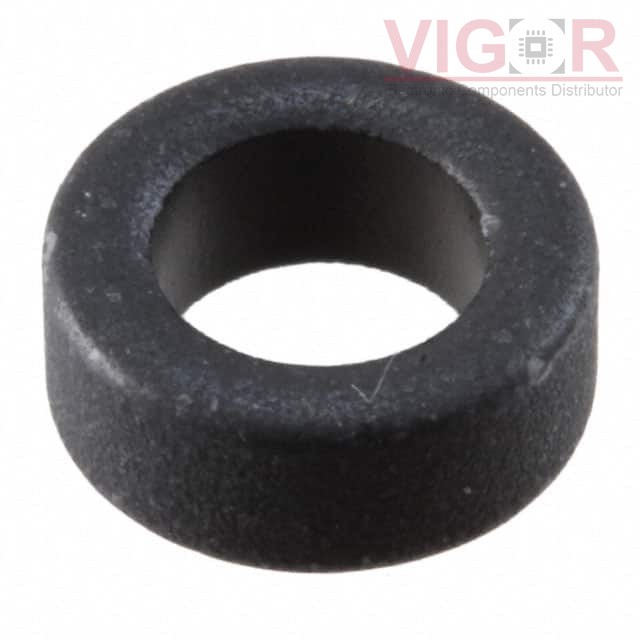

B64290P0692X046

Part No :: B64290P0692X046

Manufacturer: TDK EPCOS

Description: FERRITE CORE TOROID 2.76UH T46

Catalog: Ferrite Cores

DataSheet: B64290P0692X046 PDF

Availability: 0 pieces

Current price of B64290P0692X046 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B64290P0692X046 Specifications

Type	Description
Series:	B64290
Package:	Box
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	-
Material:	T46
Diameter:	4.02mm
Inductance Factor (Al):	2.76 µH
Tolerance:	±30%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	15000
Core Factor (ΣI/A) mm^-1:	6.83
Effective Length (le) mm:	9.63
Effective Area (Ae) mm²:	1.41
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	13.6
Finish:	Parylene
Height:	1.82mm
Length:	-
Width:	-
