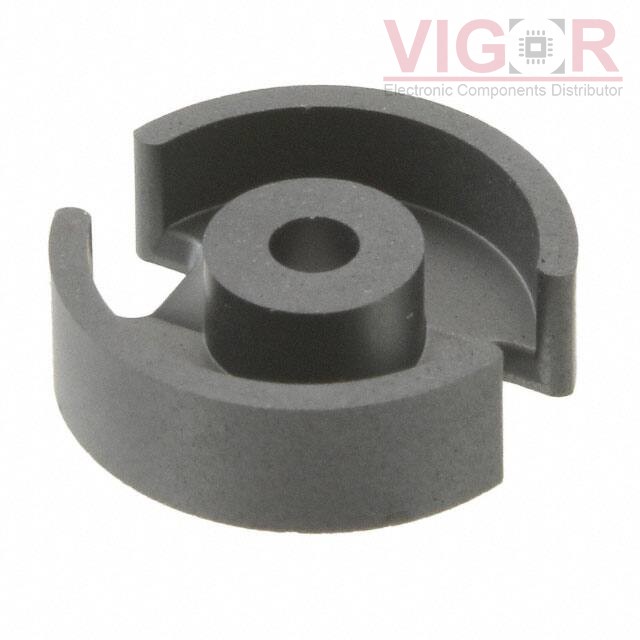

B65651T0315A048

Part No :: B65651T0315A048

Manufacturer: TDK EPCOS

Description: FERRITE CORE P 315NH N48 2PCS

Catalog: Ferrite Cores

DataSheet: B65651T0315A048 PDF

Availability: 0 pieces

Current price of B65651T0315A048 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65651T0315A048 Specifications

Type	Description
Series:	B65651
Package:	Box
Part Status:	Active
Core Type:	P (Pot Core)
Supplier Device Package:	P 18 x 11
Material:	N48
Diameter:	18.40mm
Inductance Factor (Al):	315 nH
Tolerance:	±3%
Gap:	Gapped
Effective Permeability (µe):	151
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.6
Effective Length (le) mm:	25.9
Effective Area (Ae) mm²:	43
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	1114
Finish:	Uncoated
Height:	5.30mm
Length:	-
Width:	-
