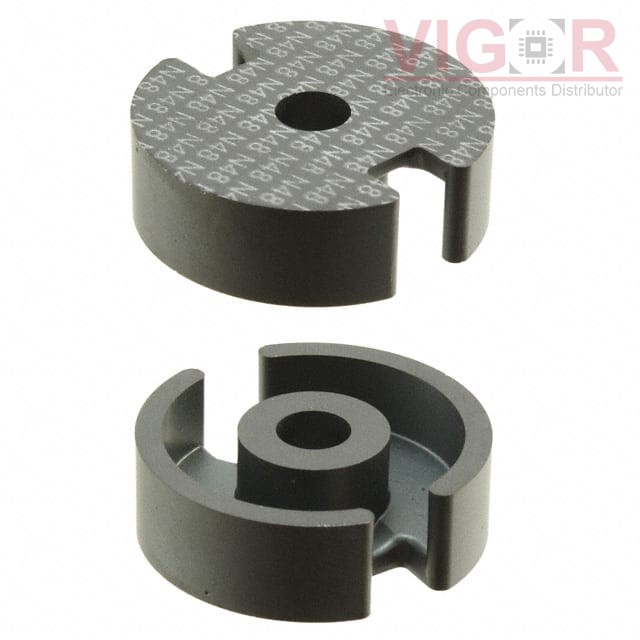

B65661D0000Y038

Part No :: B65661D0000Y038

Manufacturer: TDK EPCOS

Description: FERRITE CORE P 16UH T38 2PCS

Catalog: Ferrite Cores

DataSheet: B65661D0000Y038 PDF

Availability: 0 pieces

Current price of B65661D0000Y038 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65661D0000Y038 Specifications

Type	Description
Series:	B65661
Package:	Box
Part Status:	Active
Core Type:	P (Pot Core)
Supplier Device Package:	P 22 x 13
Material:	T38
Diameter:	22.00mm
Inductance Factor (Al):	16 µH
Tolerance:	-30%, +40%
Gap:	Ungapped
Effective Permeability (µe):	5820
Initial Permeability (µi):	10000
Core Factor (ΣI/A) mm^-1:	0.5
Effective Length (le) mm:	31.6
Effective Area (Ae) mm²:	63
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	1990
Finish:	Uncoated
Height:	6.80mm
Length:	-
Width:	-
