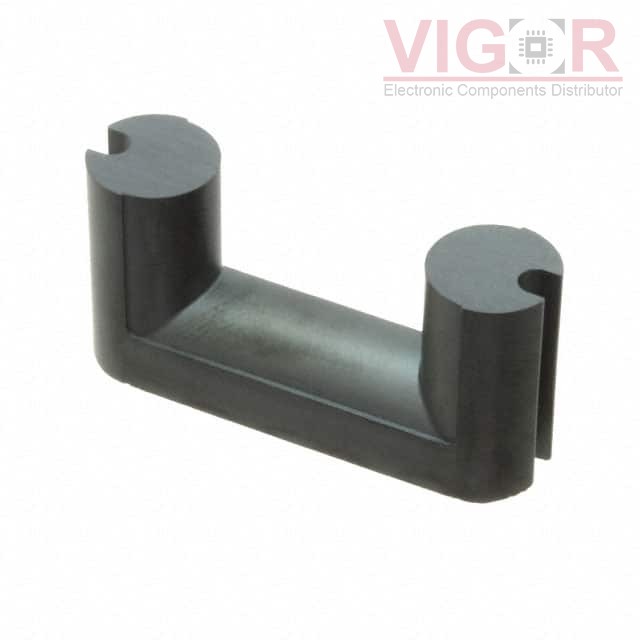

9277024002

Part No :: 9277024002

Manufacturer: Fair-Rite Products Corp.

Description: 77 U CORE

Catalog: Ferrite Cores

DataSheet: 9277024002 PDF

Availability: 924 pieces

Current price of 9277024002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

9277024002 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Core Type:	U
Supplier Device Package:	-
Material:	77
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	2000
Core Factor (ΣI/A) mm^-1:	112
Effective Length (le) mm:	93
Effective Area (Ae) mm²:	83
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	7700
Finish:	Uncoated
Height:	18.52mm
Length:	31.42mm
Width:	10.01mm
