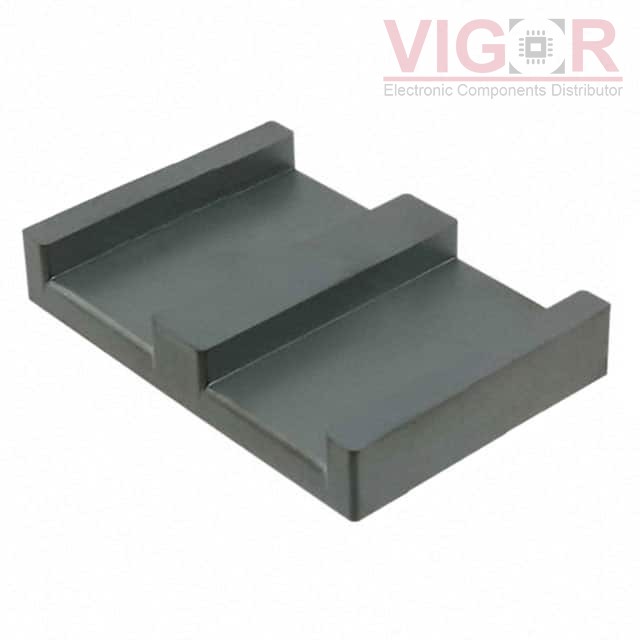

B66291P0000X149

Part No :: B66291P0000X149

Manufacturer: TDK EPCOS

Description: FERRITE CORE

Catalog: Ferrite Cores

DataSheet: B66291P0000X149 PDF

Availability: 0 pieces

Current price of B66291P0000X149 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B66291P0000X149 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Obsolete
Core Type:	I
Supplier Device Package:	I 43 x 4 x 28
Material:	N49
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	1030
Initial Permeability (µi):	1500
Core Factor (ΣI/A) mm^-1:	0.22
Effective Length (le) mm:	50.4
Effective Area (Ae) mm²:	229
Minimum Core Cross Section (Amin) mm²:	225
Effective Magnetic Volume (Ve) mm³:	11500
Finish:	Uncoated
Height:	4.10mm
Length:	43.20mm
Width:	27.90mm
