PD42-2-1141

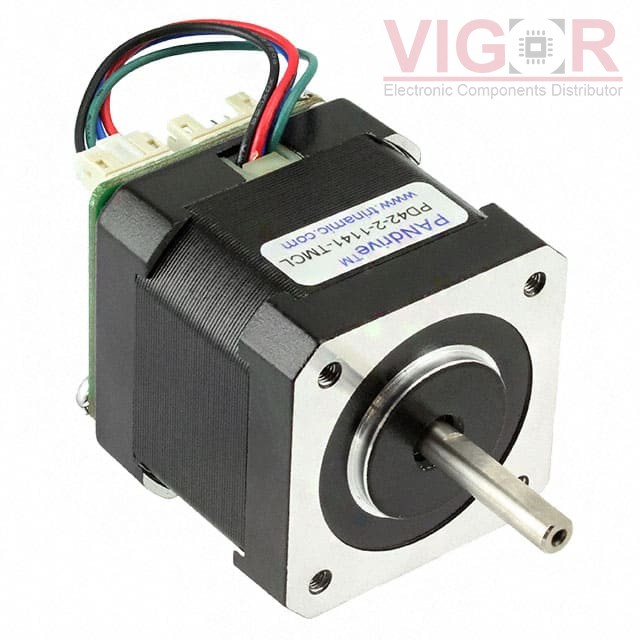

Image is for reference,
please contact us to get the real picture

Part No :: PD42-2-1141

Manufacturer: TRINAMIC Motion Control GmbH

Description: STEPPER MOTOR HYBRID BIPOLAR 24V

Catalog: Stepper Motors

DataSheet: PD42-2-1141 PDF

Availability: 25 pieces

Unit Price: ~~$183.84000~~

Current price of PD42-2-1141 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PD42-2-1141 Specifications

Type	Description
Series:	PANdrive™
Package:	Box
Part Status:	Active
Type:	Hybrid
Coil Type:	Bipolar
Voltage - Rated:	24VDC
Current Rating (Amps):	2 A
Steps per Revolution:	200
Step Angle:	1.8°
Accuracy:	±5%
Torque - Holding (oz-in / mNm):	49.56 / 350
Size / Dimension:	Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size:	17
Diameter - Shaft:	0.197" (5.00mm)
Length - Shaft and Bearing:	0.945" (24.00mm)
Mounting Hole Spacing:	-
Termination Style:	Wire Leads with Connector
Operating Temperature:	-
Coil Resistance:	-
Features:	Integrated Controller, Flatted Shaft
