PD28-3-1021-TMCL

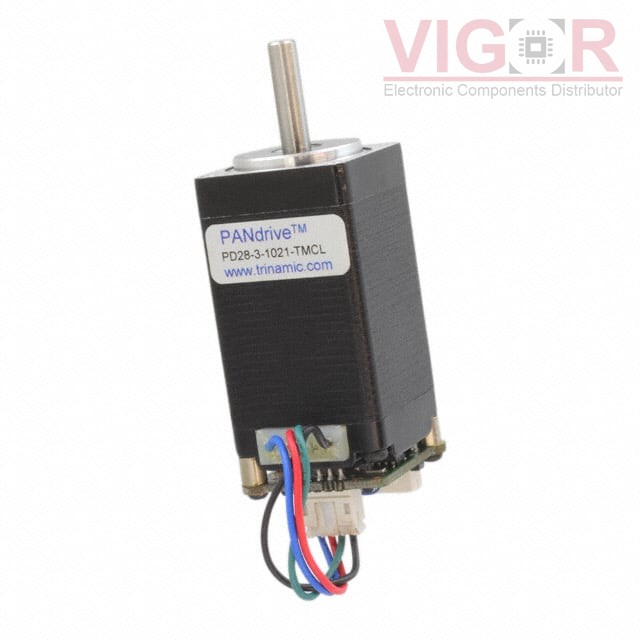

Image is for reference,
please contact us to get the real picture

Part No :: PD28-3-1021-TMCL

Manufacturer: TRINAMIC Motion Control GmbH

Description: STEPPER MOTOR HYBRID BIPOLAR 24V

Catalog: Stepper Motors

DataSheet: PD28-3-1021-TMCL PDF

Availability: 0 pieces

Unit Price: ~~$199.38000~~

Current price of PD28-3-1021-TMCL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PD28-3-1021-TMCL Specifications

Type	Description
Series:	PANdrive™
Package:	Box
Part Status:	Active
Type:	Hybrid
Coil Type:	Bipolar
Voltage - Rated:	24VDC
Current Rating (Amps):	700 mA
Steps per Revolution:	200
Step Angle:	1.8°
Accuracy:	-
Torque - Holding (oz-in / mNm):	17 / 120
Size / Dimension:	Square - 1.100" x 1.100" (28.00mm x 28.00mm)
NEMA Frame Size:	11
Diameter - Shaft:	0.197" (5.00mm)
Length - Shaft and Bearing:	0.787" (20.00mm)
Mounting Hole Spacing:	0.906" (23.00mm)
Termination Style:	Wire Leads with Connector
Operating Temperature:	-
Coil Resistance:	-
Features:	Integrated Controller, Flatted Shaft

Please confirm the specifications of the products when ordering.
