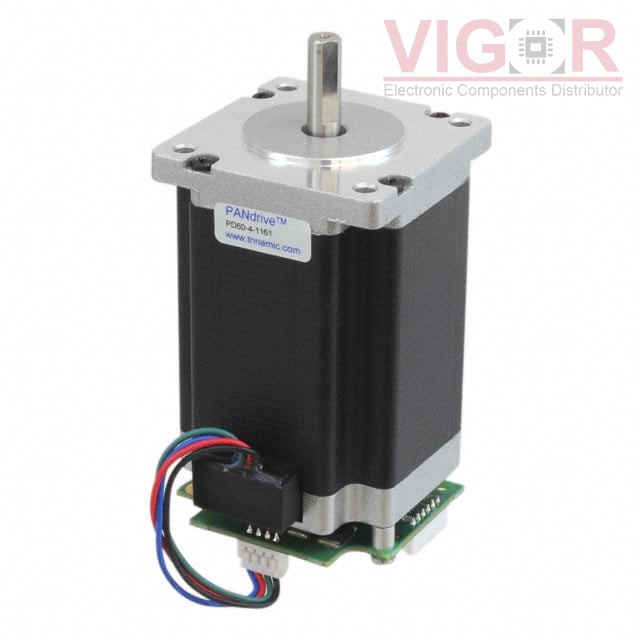

PD60-4-1161

Product image
Product thumb
Part No :

PD60-4-1161

Manufacturer
TRINAMIC Motion Control GmbH
VIGOR # :

2680562

Description
STEPPER MOTOR HYBRID BIPOLAR 24V
Catalog
Stepper Motors
DataSheet
PD60-4-1161 PDF
Country of origin
-
Date code
-
ads
PD60-4-1161 Specifications
Type Description
Series:PANdrive™
Package:Box
Part Status:Active
Type:Hybrid
Coil Type:Bipolar
Voltage - Rated:24VDC
Current Rating (Amps):2.8 A
Steps per Revolution:200
Step Angle:1.8°
Accuracy:-
Torque - Holding (oz-in / mNm):438.99 / 3100
Size / Dimension:Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size:24
Diameter - Shaft:0.315" (8.00mm)
Length - Shaft and Bearing:0.945" (24.00mm)
Mounting Hole Spacing:1.856" (47.14mm)
Termination Style:Wire Leads with Connector
Operating Temperature:-
Coil Resistance:-
Features:Integrated Controller, Flatted Shaft
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 7
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $331.6300 $331.63
10 $322.0168 $3 220.17
25 $313.4243 $7 835.61

Current price of PD60-4-1161 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
PM25S-075-032

PM25S-075-032

PERMANENT MAGNET STEPPER MOTOR

PD57-1-1076

PD57-1-1076

STEPPER MOTOR HYBRID BIPOLAR 24V

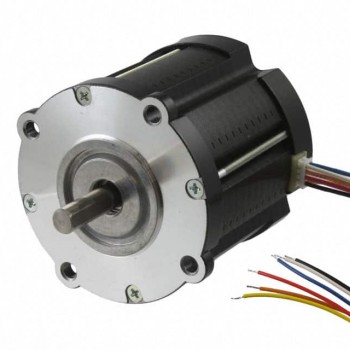

29SM-K138-00V
