SH2145-5611P

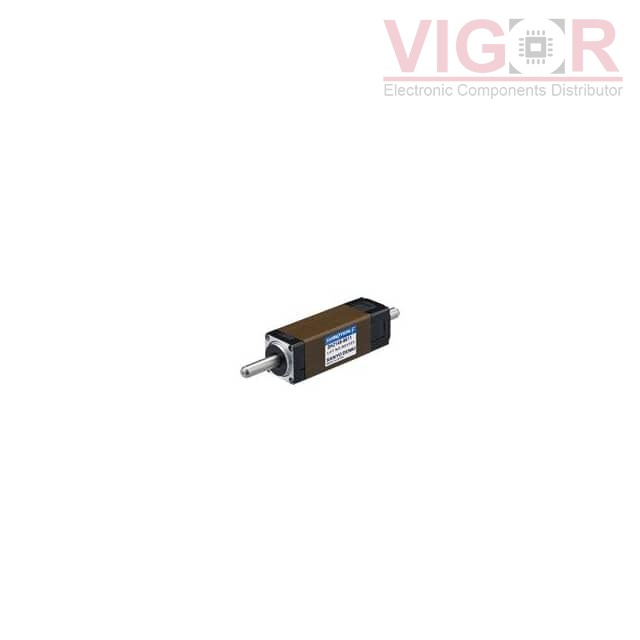

Image is for reference,
please contact us to get the real picture

Part No :: SH2145-5611P

Manufacturer: Sanyo Denki SanMotion Products

Description: STEP, F2, SQ.14, 1.8, , , BIPOLA

Catalog: Stepper Motors

DataSheet: SH2145-5611P PDF

Availability: 4 pieces

Unit Price: ~~$94.76000~~

Current price of SH2145-5611P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SH2145-5611P Specifications

Type	Description
Series:	SH
Package:	Box
Part Status:	Active
Type:	Hybrid, Dual Shaft
Coil Type:	Bipolar
Voltage - Rated:	24VDC
Current Rating (Amps):	400 mA
Steps per Revolution:	200
Step Angle:	1.8°
Accuracy:	-
Torque - Holding (oz-in / mNm):	1.42 / 10
Size / Dimension:	Square - 0.551" x 0.551" (14.00mm x 14.00mm)
NEMA Frame Size:	-
Diameter - Shaft:	0.157" (4.00mm)
Length - Shaft and Bearing:	0.591" (15.00mm)
Mounting Hole Spacing:	0.453" (11.50mm)
Termination Style:	Wire Leads
Operating Temperature:	-10°C ~ 50°C
Coil Resistance:	19 Ohms
Features:	-
