PM20L-020-HHC3

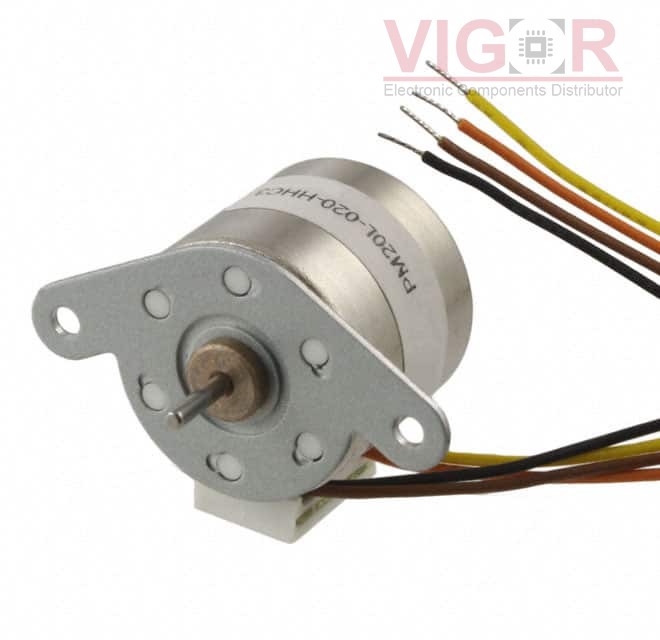

Product image
Product thumb
Part No :

PM20L-020-HHC3

Manufacturer
NMB Technologies Corp.
VIGOR # :

2680640

Description
STEPPER MOTOR PM BIPOLAR 24V
Catalog
Stepper Motors
DataSheet
PM20L-020-HHC3 PDF
Country of origin
-
Date code
-
ads
PM20L-020-HHC3 Specifications
Type Description
Series:PM
Package:Bulk
Part Status:Active
Type:Permanent Magnet
Coil Type:Bipolar
Voltage - Rated:24VDC
Current Rating (Amps):400 mA
Steps per Revolution:20
Step Angle:18°
Accuracy:-
Torque - Holding (oz-in / mNm):2.1 / 15
Size / Dimension:Round - 0.787" Dia (20.00mm)
NEMA Frame Size:-
Diameter - Shaft:0.059" (1.50mm)
Length - Shaft and Bearing:0.315" (8.00mm)
Mounting Hole Spacing:1.100" (28.00mm)
Termination Style:Wire Leads
Operating Temperature:-
Coil Resistance:13 Ohms
Features:Round Shaft
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 73
Shipped from
HK warehouse
Expected Shipping Date
Jun 14 - Jun 18 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $33.0000 $33.00
5 $32.0000 $160.00
10 $30.0000 $300.00
25 $29.0000 $725.00
50 $28.0000 $1 400.00
100 $27.0000 $2 700.00
250 $26.6000 $6 650.00

Current price of PM20L-020-HHC3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
