SH2145-5641P

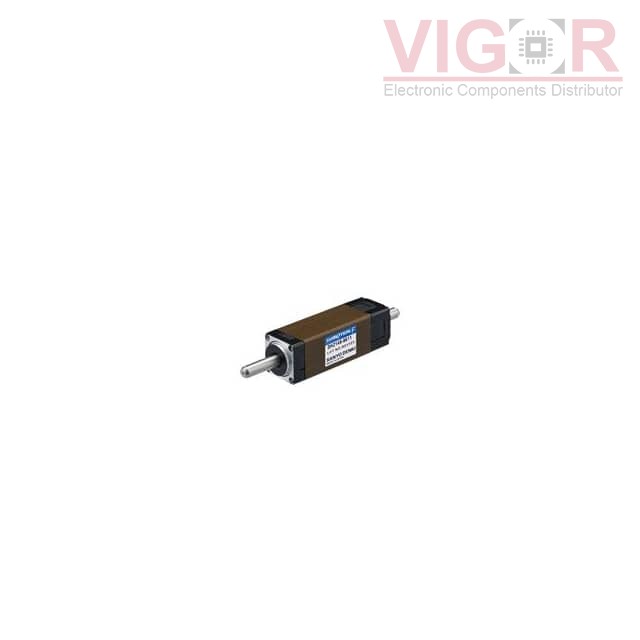

Product image
Product thumb
Part No :

SH2145-5641P

Manufacturer
Sanyo Denki SanMotion Products
VIGOR # :

2680747

Description
STEP, F2, SQ.14, 1.8, , , BIPOLA
Catalog
Stepper Motors
DataSheet
SH2145-5641P PDF
Country of origin
-
Date code
-
ads
SH2145-5641P Specifications
Type Description
Series:SH
Package:Box
Part Status:Active
Type:Hybrid
Coil Type:Bipolar
Voltage - Rated:24VDC
Current Rating (Amps):400 mA
Steps per Revolution:200
Step Angle:1.8°
Accuracy:-
Torque - Holding (oz-in / mNm):1.42 / 10
Size / Dimension:Square - 0.551" x 0.551" (14.00mm x 14.00mm)
NEMA Frame Size:-
Diameter - Shaft:0.157" (4.00mm)
Length - Shaft and Bearing:0.591" (15.00mm)
Mounting Hole Spacing:0.453" (11.50mm)
Termination Style:Wire Leads
Operating Temperature:-10°C ~ 50°C
Coil Resistance:19 Ohms
Features:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1
Shipped from
HK warehouse
Expected Shipping Date
Dec 31 - Jan 04 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $94.76 $94.76

Current price of SH2145-5641P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
