316020003

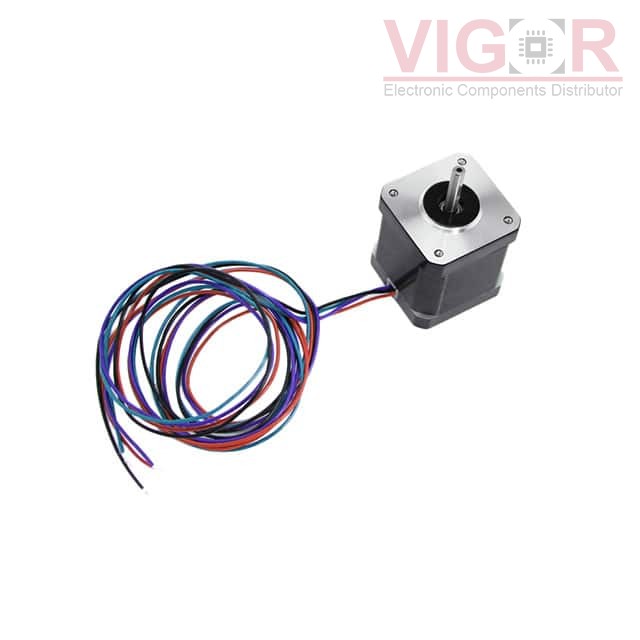

Product image
Product thumb
Part No :

316020003

Manufacturer
Seeed
VIGOR # :

4554288

Description
STEPPER MOTOR HYBRID BIPOLAR 24V
Catalog
Stepper Motors
DataSheet
316020003 PDF
Country of origin
-
Date code
-
ads
316020003 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Type:Hybrid
Coil Type:Bipolar
Voltage - Rated:24VDC
Current Rating (Amps):1.5 A
Steps per Revolution:200
Step Angle:1.8°
Accuracy:-
Torque - Holding (oz-in / mNm):76.38 / 539.37
Size / Dimension:Square - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size:17
Diameter - Shaft:0.197" (5.00mm)
Length - Shaft and Bearing:0.867" (22.00mm)
Mounting Hole Spacing:1.220" (31.00mm)
Termination Style:Wire Leads
Operating Temperature:-
Coil Resistance:1.6 Ohms
Features:Round Shaft
