108990004

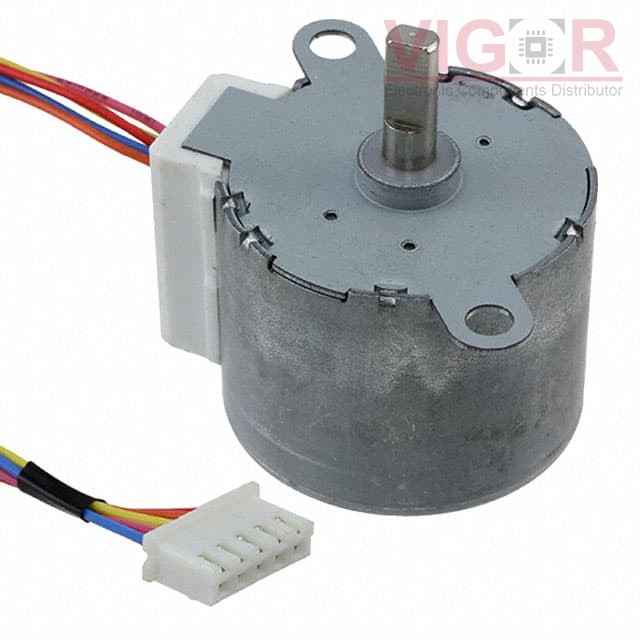

Image is for reference,
please contact us to get the real picture

Part No :: 108990004

Manufacturer: Seeed

Description: STEPPER MOTOR PM UNIPOLAR 12V

Catalog: Stepper Motors

DataSheet: 108990004 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of 108990004 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

108990004 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Type:	Permanent Magnet
Coil Type:	Unipolar
Voltage - Rated:	12VDC
Current Rating (Amps):	-
Steps per Revolution:	42.5
Step Angle:	3.75°
Accuracy:	-
Torque - Holding (oz-in / mNm):	41.66 / 294.2
Size / Dimension:	Round - 1.378" Dia (35.00mm)
NEMA Frame Size:	-
Diameter - Shaft:	0.197" (5.00mm)
Length - Shaft and Bearing:	1.181" (30.00mm)
Mounting Hole Spacing:	1.650" (42.00mm)
Termination Style:	Wire Leads with Connector
Operating Temperature:	-
Coil Resistance:	100 Ohms
Features:	Round Shaft

Please confirm the specifications of the products when ordering.
